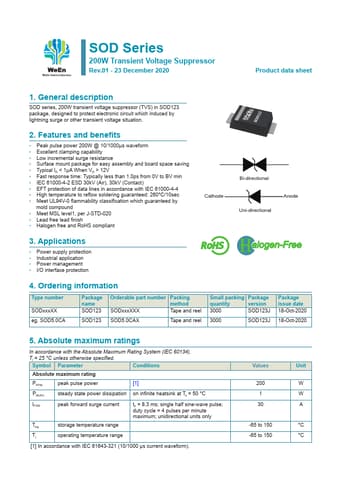

SOD11A Datasheet, Suppressor, WeEn

SOD11A Features

• Suppressor
• Peak pulse power 200W @ 10/1000μs waveform
• Excellent clamping capability
• Low incremental surge resistance
• Surface mount package for easy assembly

PDF File Details

Part number:

SOD11A

Manufacturer:

WeEn

File Size:

569.42kb

Download:

📄 Datasheet

Description:

200w transient voltage suppressor. SOD series, 200W transient voltage suppressor (TVS) in SOD123 package, designed to protect electronic circuit which induced by lightn

SOD11A Application

• Applications
• Power supply protection
• Industrial application
• Power management
• I/O interface protection h RoH
