WN3S30200DT Power Schottky diode

WeEn

Description

WN3S30200DT Power Schottky diode Rev.01 - 21 November 2022 Product data sheet 1.General .
Power Schottky diode in TO252 (DPAK) surface-mountable plastic package. High junction tempera.

📥 Download Datasheet

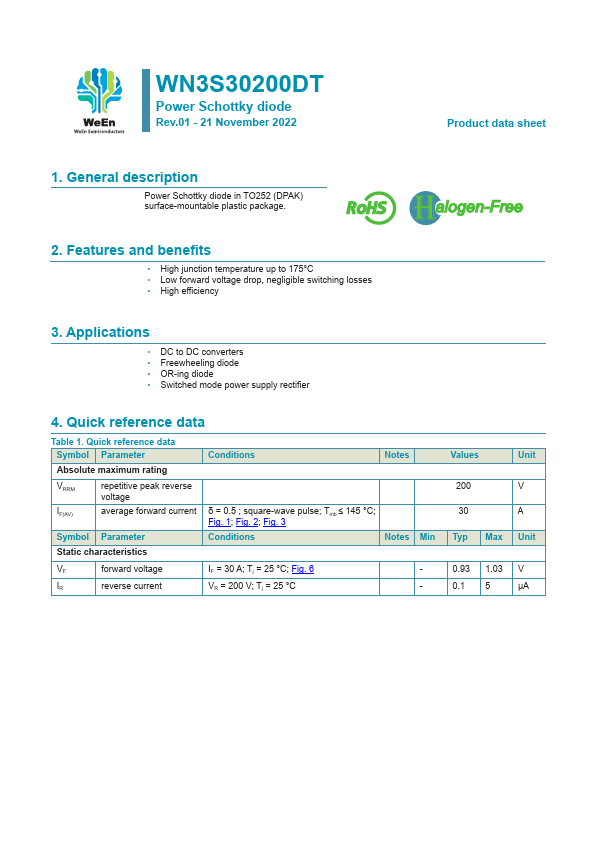

WN3S30200DT Datasheet Preview — Preview of WN3S30200DT PDF

Datasheet Specifications

Part number: WN3S30200DT
Manufacturer: WeEn
File Size: 396.62 KB
Datasheet: WN3S30200DT-WeEn.pdf
Description: Power Schottky diode

Features

* High junction temperature up to 175°C
* Low forward voltage drop, negligible switching losses

Applications

* DC to DC converters
* Freewheeling diode
* OR-ing diode
* Switched mode power supply rectifier 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Notes Absolute maximum rating VRRM repetitive peak reverse voltage IF(AV) averag
