WN3S3045CX - Dual power Schottky diode

WeEn

📥 Download Datasheet

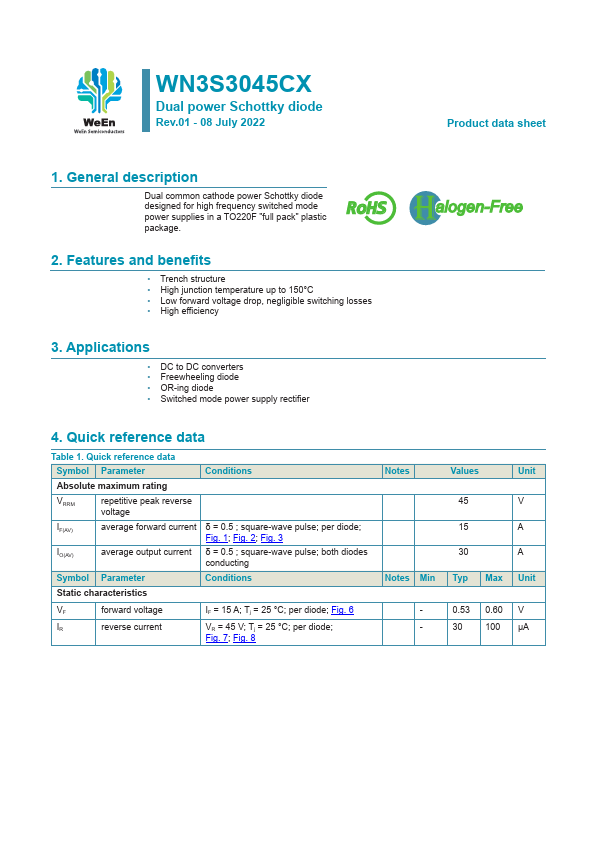

WN3S3045CX Datasheet Preview — Preview of WN3S3045CX PDF

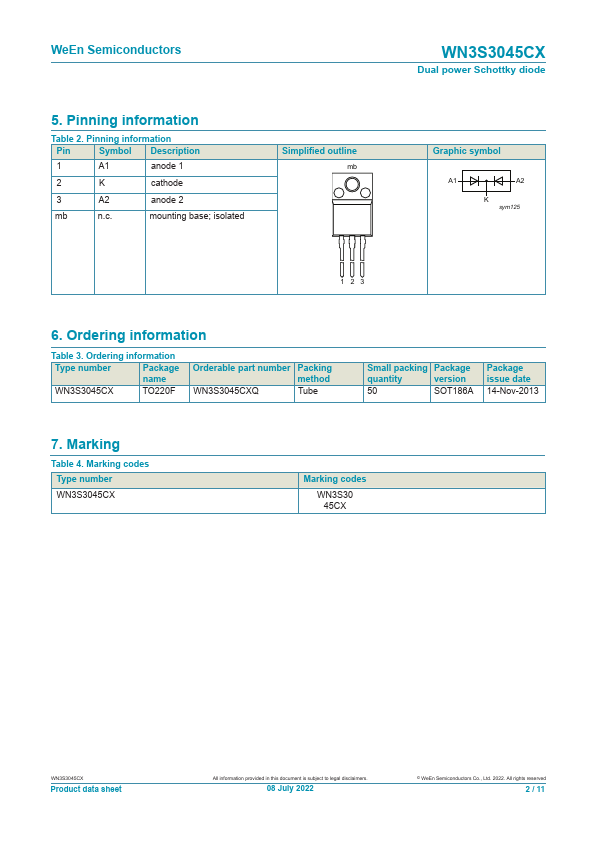

datasheet Preview Page 2

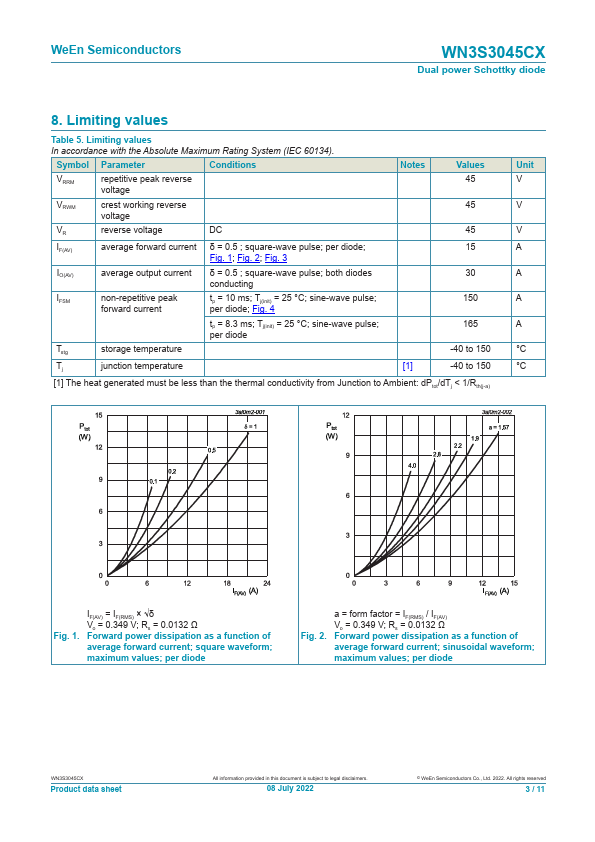

datasheet Preview Page 3

Datasheet Details

Part number	WN3S3045CX
Manufacturer	WeEn
File Size	385.24 KB
Description	Dual power Schottky diode
Datasheet	WN3S3045CX-WeEn.pdf

WN3S3045CX Product details

Description

Dual common cathode power Schottky diode designed for high frequency switched mode power supplies in a TO220F "full pack" plastic package.

Features

Trench structure.
High junction temperature up to 150°C.
Low forward voltage drop, negligible switching losses.
High efficiency halogen-Free 3.
