WTK6680

Surface Mount N-Channel MOSFET

WTK6680 Features

* Low On-Resistance

* High Vgs Max Rating Voltage

* Surface Mount Package Absolute Maximum Ratings www.DataSheet4U.com Parameter Symbol VDS VGS Ratings 30 ±20 11.5 9.5 50 2.5 0.02 -55 ~ +150 Unit V V A A A W W/ Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Continu

WTK6680 General Description

The WTK6680 provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. 1 The SOP-8 package is universally preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC.

WTK6680 Datasheet (658.32 KB)

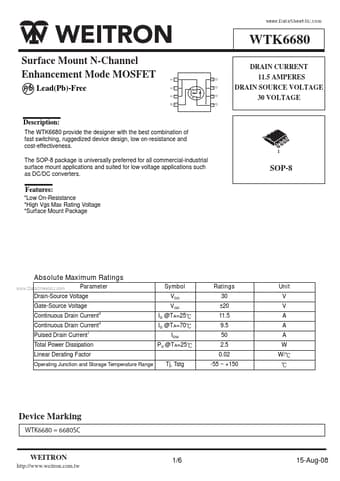

Preview of WTK6680 PDF

Datasheet Details

Part number:

WTK6680

Manufacturer:

Weitron Technology

File Size:

658.32 KB

Description:

Surface mount n-channel mosfet.
WTK6680 Surface Mount N-Channel Enhancement Mode MOSFET P b Lead(Pb)-Free DRAIN CURRENT 11.5 AMPERES DRAIN SOURCE VOLTAGE 30 VOLTAGE D 1 2 3 4 S S S .
