C1008 Datasheet - Weitron

C1008 NPN Plastic-Encapsulate Transistor

WEITRON NPN Plastic-Encapsulate Transistor P b Lead(Pb)-Free 2SC1008 1. EMITTER 2. COLLECTOR 3. BASE TO-92 MAXIMUM RATINGS (TA=25°C unless otherwise noted) Parameter Collector-Base Voltage Collector Current Power Dissipation Junction Temperature Storage Temperature Symbol VCBO ICM PCM TJ Tstg Value 80 0.7 0.8 -55 to +150 -55 to +150 Units V A W °C °C ELECTRICAL CHARACTERISTICS (Tamb=25°C unless otherwise specified) Parameter Collector-base breakdown voltage Collector-emitter breakdown vo.

C1008 Datasheet (348.77 KB)

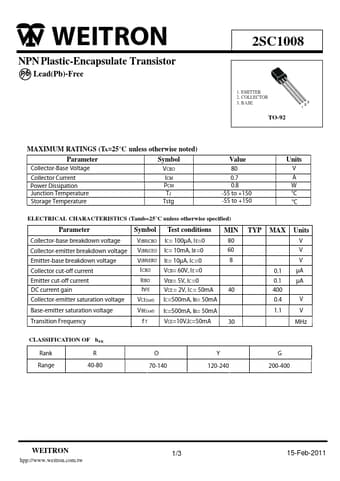

Preview of C1008 PDF
C1008 Datasheet Preview Page 2 C1008 Datasheet Preview Page 3

Datasheet Details

Part number:

C1008

Manufacturer:

Weitron

File Size:

348.77 KB

Description:

Npn plastic-encapsulate transistor.
