SDC013-X0-50XE Datasheet - Wellco

SDC013-X0-50XE SDC013-X0-50XE

DAT 3 CMD VSS VDD CLK VSS 2 DAT 0 DAT 1 DAT 2 DAT 4 DAT 5 DAT 6 DAT 7 CD WP GND D E F G Free Datasheet http://www.datasheet4u.com/ I J H RECOMMENEDE P.C.B LAYOUT TOLERANCE 0.05mm Pb PROCESS COMPLIANT GENERAL TOLERANCE X.± 0.40 .X± 0.30 .XX± 0.20 .XXX± 0.10 Mini 5 in 1 CONNECTOR SDC/MMC/RS M.

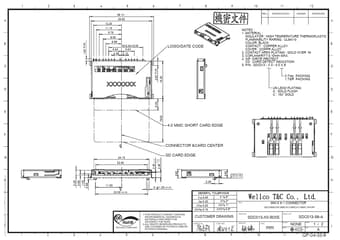

1 2 3 4 28.10 5 6 7 8 9 10 REV. 11 MODIFICATION DRAWN 12 APPROVED A 26.60 12.20 11.10 9.75 8.05 1.00 TYP. A NOTES : 1. MATERIAL : INSULATOR : HIGH TEMPERATURE THERMOPLASTIC FLAMMABILITY RARING : UL94V-0 COLOR: BLACK CONTACT : COPPER ALLOY COVER : COPPR ALLOY 2. CONTACT AREA PLATING : GOLD OVER Ni 3. COPLANARITY:0.10mm MAX. 4. WP :WRITE PROTECT CD :CARD DETECT INDICATION 5. P/N : SDC013 - X 0 - 5 0 X E 0.Tray PACKING 1.T&R PACKING UN LEAD PLATING: A : GOLD FLASH C : 10u" GOLD 5.00 .

SDC013-X0-50XE Datasheet (648.15 KB)

SDC013-X0-50XE Datasheet Preview — Preview of SDC013-X0-50XE PDF

Datasheet Details

Part number:

SDC013-X0-50XE

Manufacturer:

Wellco

File Size:

648.15 KB

Description:

Sdc013-x0-50xe.
