WT7512 Datasheet - Weltrend

PC POWER SUPPLY SUPERVISOR

WT7512 Features

* The Over / Under Voltage Detector (OVD / UVD) monitors 3.3V, 5V, 12V input voltage level.

* Both of the power good output (PGO) and fault protection latch (FPL_N) are Open Drain Output.

* 75 / 300 ms time delay for UVD.

* 300 ms time delay for PGO.

* 38 ms f

WT7512 General Description

The WT7512 provides protection circuits, power good output (PGO), fault protection latch (FPL_N), and a protection detector function (PDON_N) control. It can minimize external components of switching power supply systems in personal computer. The Over / Under Voltage Detector (OVD / UVD) monitors 3..

WT7512 Datasheet (88.78 KB)

Preview of WT7512 PDF

Datasheet Details

Part number:

WT7512

Manufacturer:

Weltrend

File Size:

88.78 KB

Description:

Pc power supply supervisor.

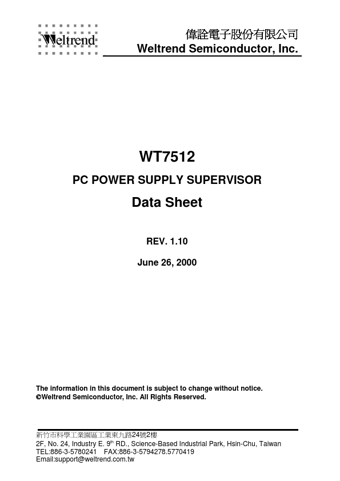

  Weltrend Semiconductor, Inc. ` WT7512 PC POWER SUPPLY SUPERVISOR Data Sheet REV. 1.10 June 26, 2000 The information in this document is sub.
