LSD056BAM-10, LSD056BUE-10 - LED DISPLAYS

LSD056BAM-10 Description

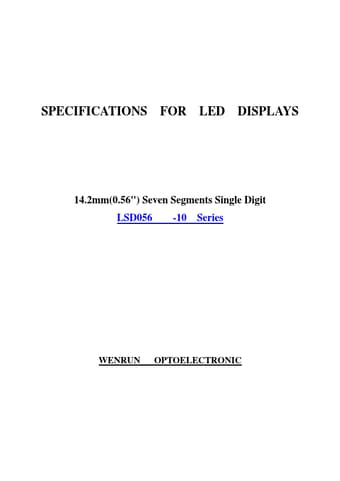

SPECIFICATIONS FOR LED DISPLAYS 14.2mm(0.56") Seven Segments Single Digit LSD056 -10 Series WENRUN OPTOELECTRONIC WENRUN LED Displays LSD056 .
: Industrial standard size.

LSD056BAM-10 Applications

* Audio equipment or Instrument panels. General use for digital indicators. Multimedia product. Selection Guide: Part No. Anode LSD056BUE-10 Cathode LSD056AUE-10 LSD056BUY-10 LSD056AUY-10 LSD056BAM-10 LSD056AAM-10 Material AlGaInP AlGaInP AlGaInP Chip Emitting Color High Super Red High Supe

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LSD056BAM-10, LSD056BUE-10. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LSD056BAM-10, LSD056BUE-10
Manufacturer
Wenrun
File Size
162.60 KB
Datasheet
LSD056BUE-10-Wenrun.pdf
Description
LED DISPLAYS
Note
This datasheet PDF includes multiple part numbers: LSD056BAM-10, LSD056BUE-10.
Please refer to the document for exact specifications by model.
