LSD04N70A

N-channel Power MOSFET

LSD04N70A Features

* Ultra low RDS(on)

* Ultra low gate charge (typ. Qg = 11nC)

* 100% UIS tested

* RoHS compliant TO-251 TO-252 TO-220 TO-220MF D Applications

* Power faction correction (PFC).

* Switched mode power supplies (SMPS).

* Uninterruptible power supply (UPS). G S N-Channel M

LSD04N70A General Description

LonFETTM Power MOSFET is fabricated using advanced super junction technology. The resulting device has extremely low on resistance, making it especially suitable for applications which require superior power density and outstanding efficiency. Product Summary VDS @ Tj,max RDS(on),max 750V 0.96Ω .

LSD04N70A Datasheet (808.99 KB)

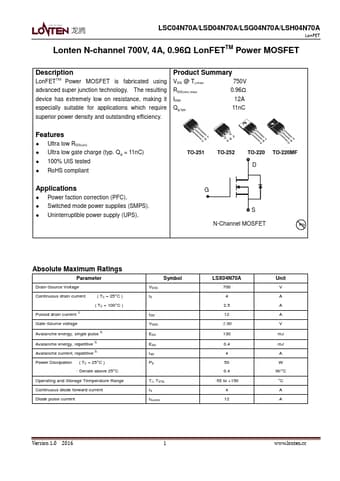

Preview of LSD04N70A PDF

Datasheet Details

Part number:

LSD04N70A

Manufacturer:

LONTEN

File Size:

808.99 KB

Description:

N-channel power mosfet.
