D1994 2-Way Combiner/Divider

Werlatone , Inc. 17 Jon Barrett Road Patterson, New York 12563 T (845) 278 2220 www.werlatone.com F (845) 278 3440 sales@werlatone.com 2-Way -Way Combiner/Divide Combiner/Divider Model D1994 Frequency: Power: Insertion Loss: VSWR: Isolation: 20 - 100 MHz 600 W CW 0.3 dB Max. 1.30:1 Max. 20 dB Min. ± 5° Max. 0.2 dB Max. Insertion Loss (dB) 0 0.1 0.2 0.3 20 36 52 68 84 100 Phase Balance: Amplitude Balance: Notes Frequency (MHz) 1.40 VS.

D1994 Datasheet (65.13 KB)

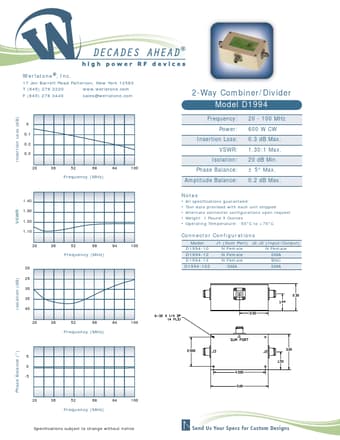

D1994 Datasheet Preview — Preview of D1994 PDF

Datasheet Details

Part number:

D1994

Manufacturer:

Werlatone

File Size:

65.13 KB

Description:

2-way combiner/divider.
