EDI8F321024C - 1024Kx32 Static RAM CMOS

Product Overview

White Electronic Designs Corporation

Datasheet Details

Part number	EDI8F321024C
Manufacturer	White Electronic Designs Corporation
File Size	336.62 KB
Description	1024Kx32 Static RAM CMOS
Datasheet	EDI8F321024C Datasheet

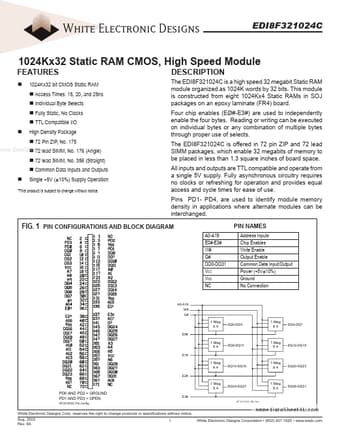

Additional preview pages of the EDI8F321024C datasheet.

Product details

Description

High Density Package 72 Pin ZIP, No. 72 lead SIMM, No. 72 lead SIMM, No. Common Data Inputs and Outputs Single +5V (±10%) Supply Operation This product is subject to change without notice.

Features

EDI8F321024C 1024Kx32 Static RAM CMOS, High Speed Module 1024Kx32 bit CMOS Static RAM.
Access Times: 15, 20, and 25ns.
Individual Byte Selects.
Fully Static, No Clocks.
TTL Compatible I/O The EDI8F321024C is a high speed 32 megabit Static RAM module organized as 1024K words by 32 bits. This module is constructed from eight 1024Kx4 Static RAMs in SOJ packages on an epoxy laminate (FR4) board. Four chip enables (EØ#-E3#) are used to independently enable the four bytes.
