EDI8F32512V - 512Kx32 Static RAM CMOS

The EDI8F32512V by White Electronic Designs Corporation is a 512Kx32 Static RAM CMOS. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the EDI8F32512V 512Kx32 Static RAM CMOS datasheet (White Electronic Designs Corporation).

Datasheet Details

Part number EDI8F32512V
Manufacturer White Electronic Designs Corporation
File Size 402.47 KB
Description 512Kx32 Static RAM CMOS
Datasheet download datasheet EDI8F32512V_WhiteElectronicDesignsCorporation.pdf

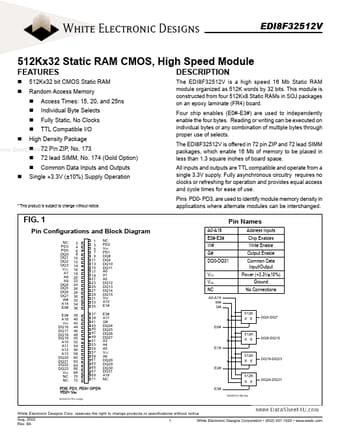

Additional preview pages of the EDI8F32512V datasheet.

EDI8F32512V Product details

Description

512Kx32 bit CMOS Static RAM Random Access Memory n n n n Access Times: 15, 20, and 25ns Individual Byte Selects Fully Static, No Clocks TTL Compatible I/O The EDI8F32512V is a high speed 16 Mb Static RAM module organized as 512K words by 32 bits.This module is constructed from four 512Kx8 Static RAMs in SOJ packages on an epoxy laminate (FR4) board.Four chip enables (E0#-E3#) are used to independently enable the four bytes.Reading or writing can be executed on individual bytes or any combin

Features
