EDI7F4341MV

4x1Mx32 FLASH MODULE

EDI7F4341MV Features

* 4 x1Mx32

* Based on Intel's E28F008S3 Flash Device

* Fast Read Access Time - 120ns

* Flexible Smart Voltage

* 2.7-3.6V Program Erase 2.7-3.6V Read Operation 12Vpp Fast Production Programming 30mA per Device Active Current 20A per Device CMOS Standby Curr

EDI7F4341MV General Description

The EDI7F4341MV is organized as four banks of 1Mx32. The module is based on Intel's E28F008S3 1Mx8 Flash device in TSOP packages which are mounted on an FR4 substrate. The module offers access times between 120 and 150ns allowing for operation of high-speed microprocessors without wait states.

EDI7F4341MV Datasheet (336.32 KB)

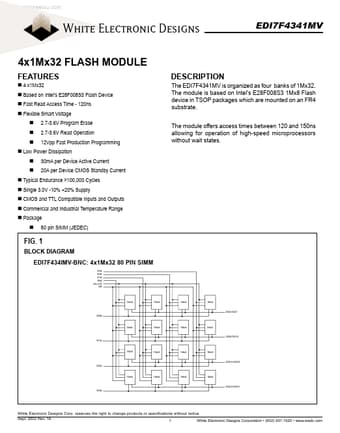

Preview of EDI7F4341MV PDF

Datasheet Details

Part number:

EDI7F4341MV

Manufacturer:

White Electronic Designs

File Size:

336.32 KB

Description:

4x1mx32 flash module.
