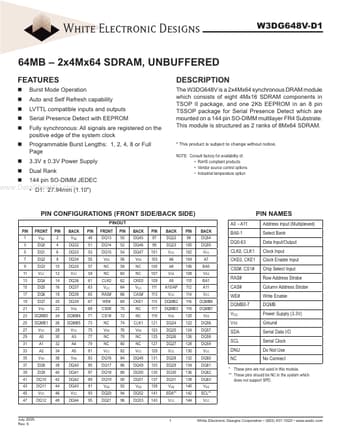

W3DG648V-D1 Datasheet Preview Page 2 W3DG648V-D1 Datasheet Preview Page 3

Datasheet Details

Part number:

W3DG648V-D1

Manufacturer:

White Electronic Designs

File Size:

159.20 KB

Description:

Sdram unbuffered.

W3DG648V-D1, SDRAM UNBUFFERED

The W3DG648V is a 2x4Mx64 synchronous DRAM module which consists of eight 4Mx16 SDRAM components in TSOP II package, and one 2Kb EEPROM in an 8 pin TSSOP package for Serial Presence Detect which are mounted on a 144 pin SO-DIMM multilayer FR4 Substrate.

This module is structured as 2 ranks of 8Mx64

W3DG648V-D1 Features

* Burst Mode Operation Auto and Self Refresh capability LVTTL compatible inputs and outputs Serial Presence Detect with EEPROM Fully synchronous: All signals are registered on the positive edge of the system clock Programmable Burst Lengths: 1, 2, 4, 8 or Full Page 3.3V ± 0.3V Power Supply Dual Rank 1
