W3DG7234V-D2

SDRAM UNBUFFERED

W3DG7234V-D2 Features

* PC1000 and PC133 compatible Burst Mode Operation Auto and Self Refresh capability LVTTL compatible inputs and outputs Serial Presence Detect with EEPROM Fully synchronous: All signals are registered on the positive edge of the system clock Programmable Burst Lengths: 2, 3, 4, 8 or Full Page JEDEC st

W3DG7234V-D2 General Description

The W3DG7234V is organized as a 2x16Mx72 synchronous DRAM module which consists of eighteen 16Mx8 SDRAM components in TSOP II package and one 2K EEPROM in an 8 pin TSSOP package for Serial Presence Detect which are mounted on a 168 Pin DIMM multilayer FR4 Substrate.
* This product is under devel.

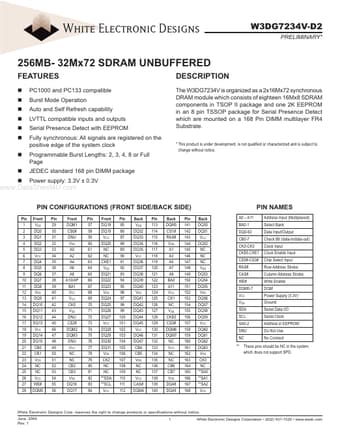

W3DG7234V-D2 Datasheet (150.32 KB)

Preview of W3DG7234V-D2 PDF

Datasheet Details

Part number:

W3DG7234V-D2

Manufacturer:

White Electronic Designs

File Size:

150.32 KB

Description:

Sdram unbuffered.
