W3DG7237V-D2

SDRAM UNBUFFERED

W3DG7237V-D2 Datasheet (136.33 KB)

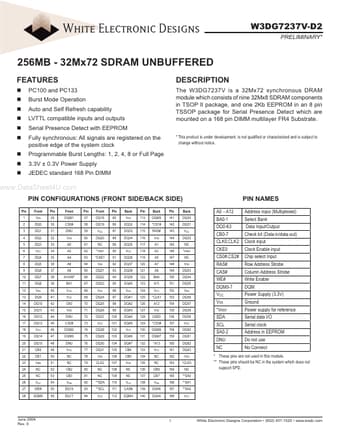

Preview of W3DG7237V-D2 PDF Datasheet

Datasheet Details

Part number:

W3DG7237V-D2

Manufacturer:

White Electronic Designs

File Size:

136.33 KB

Description:

Sdram unbuffered

W3DG7237V-D2 Features

* PC100 and PC133 Burst Mode Operation Auto and Self Refresh capability LVTTL compatible inputs and outputs Serial Presence Detect with EEPROM Fully synchronous: All signals are registered on the positive edge of the system clock Programmable Burst Lengths: 1, 2, 4, 8 or Full Page 3.3V ± 0.3V Power Su

W3DG7237V-D2 General Description

The W3DG7237V is a 32Mx72 synchronous DRAM module which consists of nine 32Mx8 SDRAM components in TSOP II package, and one 2Kb EEPROM in an 8 pin TSSOP package for Serial Presence Detect which are mounted on a 168 pin DIMM multilayer FR4 Substrate.
* This product is under development, is not qu.
