WV3EG265M64EFSU-D4 Datasheet - White Electronic Designs

WV3EG265M64EFSU-D4 1GB- 2x64Mx64 DDR SDRAM UNBUFFERED

The WV3EG265M64EFSU is a 2x64Mx64 Double Data Rate SDRAM memory module based on 512Mb DDR SDRAM component. The module consists of sixteen 64Mx8 bit with 4 banks DDR SDRAMs in FBGA packages mounted on a 200 pin substrate. Synchronous design allows precise cycle control with the use of system clock. D.

WV3EG265M64EFSU-D4 Features

* Double-data-rate architecture PC2700 and PC2100 Bi-directional data strobes (DQS) Differential clock inputs (CK & CK#) Programmable Read Latency 2, 2.5 (clock) Programmable Burst Length (2,4,8) Programmable Burst type (sequential & interleave) Auto and self refresh, (8K/64ms refresh) Serial presence

WV3EG265M64EFSU-D4_WhiteElectronicDesigns.pdf

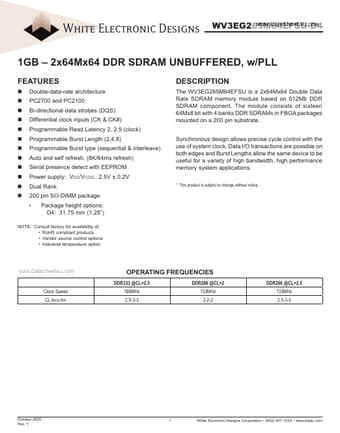

Preview of WV3EG265M64EFSU-D4 PDF
WV3EG265M64EFSU-D4 Datasheet Preview Page 2 WV3EG265M64EFSU-D4 Datasheet Preview Page 3

Datasheet Details

Part number:

WV3EG265M64EFSU-D4

Manufacturer:

White Electronic Designs

File Size:

186.30 KB

Description:

1gb- 2x64mx64 ddr sdram unbuffered.
