WV3HG2256M72AER-D6 - 4GB - 2x256Mx72 DDR2 SDRAM RDIM

Datasheet Summary

Description

The WV3HG2256M72AER is a 2x256Mx72 Double Data Rate DDR2 SDRAM high density module based on 1Gb DDR2 SDRAM components.

Features

240-pin, dual in-line memory module (DIMM) Fast data transfer rates: PC2-6400.
, PC2-5300.
, PC2-4300 and PC2-3200 Support ECC error detection and correction VCC = VCCQ = 1.8V± 0.1V VCCSPD = +1.7V to +3.6V JEDEC standard 1.8V I/O (SSTL_18-compatible) Differential data strobe (DQS, DQS#) option Four-bit prefetch architecture DLL to align DQ and DQS transitions with CK Multiple internal device banks for concurrent operation Supports duplicate output strobe (RDQS/RDQS#) Programmable CAS# late.

White Electronic Designs

📥 Download Datasheet

Datasheet Details

Part number	WV3HG2256M72AER-D6
Manufacturer	White Electronic Designs
File Size	278.57 KB
Description	4GB - 2x256Mx72 DDR2 SDRAM RDIM
Datasheet	WV3HG2256M72AER-D6 Datasheet
Additional preview pages of the WV3HG2256M72AER-D6 datasheet.

📁 Similar Datasheet

Other Datasheets by White Electronic Designs

WV3HG2128M64EEU-D4 - 2GB - 2x128Mx64 DDR2 SDRAM UNBUFFERED
WV3HG2128M64EEU-D6 - 2GB - 2x128Mx64 DDR2 SDRAM UNBUFFERED
WV3HG2128M72AER-D6 - 2GB - 2x128Mx72 DDR2 SDRAM REGISTERED
WV3HG2128M72EEU-AD4 - 2GB - 2x128Mx72 DDR2 SDRAM UNBUFFERED
WV3HG2128M72EEU-D6 - 2GB - 2x128Mx72 DDR2 SDRAM UNBUFFERED DIMM
WV3HG264M64EEU-D4 - 1GB - 2x64Mx64 DDR2 SDRAM UNBUFFERED
WV3HG264M64EEU-D6 - 1GB - 2x64Mx64 DDR2 SDRAM UNBUFFERED
WV3HG264M72EER-D7 - 1GB - 2x64Mx72 DDR2 SDRAM REGISTERED

Full PDF Text Transcription

Click to expand full text

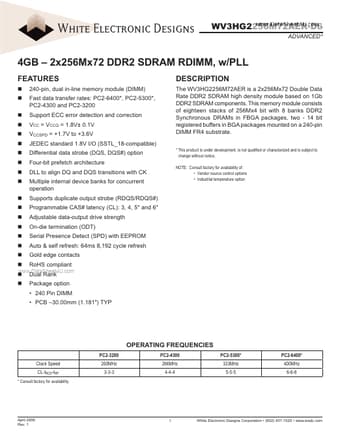

White Electronic Designs WV3HG2256M72AER-D6 ADVANCED* 4GB – 2x256Mx72 DDR2 SDRAM RDIMM, w/PLL FEATURES 240-pin, dual in-line memory module (DIMM) Fast data transfer rates: PC2-6400*, PC2-5300*, PC2-4300 and PC2-3200 Support ECC error detection and correction VCC = VCCQ = 1.8V± 0.1V VCCSPD = +1.7V to +3.6V JEDEC standard 1.
