WV3HG2128M72EEU-AD4 Datasheet - White Electronic Designs

WV3HG2128M72EEU-AD4 2GB - 2x128Mx72 DDR2 SDRAM UNBUFFERED

The WV3HG2128M72EEU is a 2x128Mx72 Double Data Rate DDR2 SDRAM high density module. This memory module consists of eighteen 128Mx8 bit stacked BGA with 8 banks DDR2 Synchronous DRAMs in FBGA packages, mounted on a 200-pin SO-DIMM FR4 substrate. * 200 Pin SO-DIMM * PCB * 30.0.

WV3HG2128M72EEU-AD4 Features

* 200-pin, dual in-line memory module (SO-DIMM) Support ECC error detection and correction Fast data transfer rates: PC2-6400

* , PC2-5300

* , PC2-4200 and PC2-3200 VCC = VCCQ = 1.8V ±0.1V 1.8V I/O (SSTL_18-compatible) Differential data strobe (DQS, DQS#) option Differential clock inputs (CK, CK#)

WV3HG2128M72EEU-AD4_WhiteElectronicDesigns.pdf

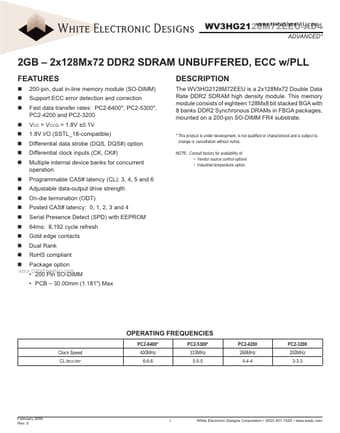

Preview of WV3HG2128M72EEU-AD4 PDF
WV3HG2128M72EEU-AD4 Datasheet Preview Page 2 WV3HG2128M72EEU-AD4 Datasheet Preview Page 3

Datasheet Details

Part number:

WV3HG2128M72EEU-AD4

Manufacturer:

White Electronic Designs

File Size:

218.46 KB

Description:

2gb - 2x128mx72 ddr2 sdram unbuffered.
