W3EG264M72EFSUXXXD4 - 1GB - 2x64Mx72 DDR SDRAM

Datasheet Summary

Description

The W3EG264M72EFSU is a 2x64Mx72 Double Data Rate SDRAM memory module based on 512Mb DDR SDRAM components.

The module consists of eighteen 64Mx8 DDR SDRAMs in FBGA packages mounted on a 200 pin FR4 substrate.

Synchronous design allows precise cycle control with the use of system clock.

Features

Fast data transfer rate: PC-2100, PC-2700 and PC3200 Clock speeds of 133 MHz, 166 MHz and 200MHz Supports ECC error detection and correction Bi-directional data strobes (DQS) Differential clock inputs (CK & CK#) Programmable Read Latency 3 and 4 (clock) Programmable Burst Length (2, 4 or 8) Programmable Burst type (sequential & interleave) Edge aligned data output, center aligned data input Auto and self refresh Serial presence detect (SPD) with EEPROM Dual Rank VCC = VCCQ = +2.6V (200MHz) www. D.

White Electronic

📥 Download Datasheet

Datasheet Details

Part number	W3EG264M72EFSUXXXD4
Manufacturer	White Electronic
File Size	223.06 KB
Description	1GB - 2x64Mx72 DDR SDRAM
Datasheet	W3EG264M72EFSUXXXD4 Datasheet
Additional preview pages of the W3EG264M72EFSUXXXD4 datasheet.

📁 Similar Datasheet

Other Datasheets by White Electronic

W3EG264M72AFSRXXXD3 - 1GB - 2x64Mx72 DDR SDRAM REGISTERED ECC
W3EG264M64EFSU-D4 - 1GB - 2x64Mx64 DDR SDRAM
W3EG264M64ETSR-JD3 - 1GB - 2x64Mx64 DDR SDRAM REGISTERED
W3EG2128M72AFSR-AD3 - 2GB - 2x128Mx72 DDR SDRAM REGISTERED ECC
W3EG2128M72AFSR-D3 - 2GB - 2x128Mx72 DDR SDRAM REGISTERED ECC
W3EG2256M72ASSR-AJD3 - 4GB - 2x256Mx72 DDR SDRAM REGISTERED ECC
W3EG2256M72ASSR-JD3 - 4GB - 2x256Mx72 DDR SDRAM REGISTERED ECC
W3EG64128S-AD4 - 1GB - 2x64Mx64 DDR SDRAM UNBUFFERED

Full PDF Text Transcription

Click to expand full text

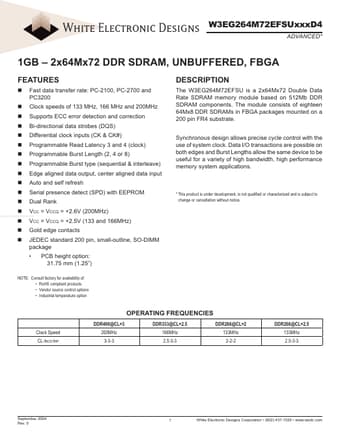

White Electronic Designs W3EG264M72EFSUxxxD4 ADVANCED* 1GB – 2x64Mx72 DDR SDRAM, UNBUFFERED, FBGA FEATURES Fast data transfer rate: PC-2100, PC-2700 and PC3200 Clock speeds of 133 MHz, 166 MHz and 200MHz Supports ECC error detection and correction Bi-directional data strobes (DQS) Differential clock inputs (CK & CK#) Programmable Read Latency 3 and 4 (clock) Programmable Burst Length (2, 4 or 8) Programmable Burst type (sequential & interleave) Edge aligned data output, center aligned data input Auto and self refresh Serial presence detect (SPD) with EEPROM Dual Rank VCC = VCCQ = +2.6V (200MHz) www.DataSheet4U.com DESCRIPTION The W3EG264M72EFSU is a 2x64Mx72 Double Data Rate SDRAM memory module based on 512Mb DDR SDRAM components.
