WPM3410 Single P-Channel Power MOSFET

WillSEMI

Description

WPM3410 Single P-Channel, -30V, -5.4A, Power MOSFET VDS (V) -30 Typical RDS(on) (mΩ) 32 @ VGS=-10V 49 @ VGS=-4.5V WPM3410 http://www.omnivision-gro.
The WPM3410 is P-Channel enhancement MOS Field Effect Transistor.

📥 Download Datasheet

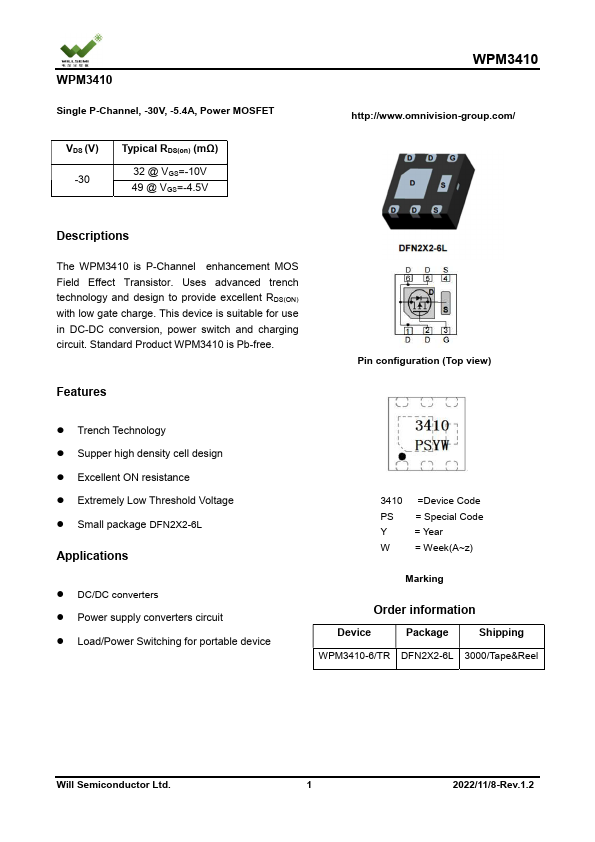

WPM3410 Datasheet Preview — Preview of WPM3410 PDF

Datasheet Specifications

Part number: WPM3410
Manufacturer: WillSEMI
File Size: 847.12 KB
Datasheet: WPM3410-WillSEMI.pdf
Description: Single P-Channel Power MOSFET

Features

* Pin configuration (Top view)
* Trench Technology
* Supper high density cell design
* Excellent ON resistance
* Extremely Low Threshold Voltage

Applications

* DC/DC converters
* Power supply converters circuit
* Load/Power Switching for portable device 3410 PS Y W =Device Code = Special Code = Year = Week(A~z) Marking Order information Device Package Shipping WPM3410-6/TR DFN2X2-6L 3000/Tape&Reel Will Semiconductor Ltd. 1 2022/11/
