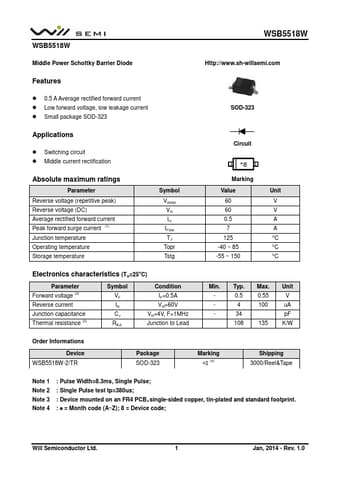

WSB5518W Datasheet, Diode, WillSEMI

WSB5518W Features

• Diode
• 0.5 A Average rectified forward current
• Low forward voltage, low leakage current
• Small package SOD-323 Http://www.sh-willsemi.com SOD-323 Applications

PDF File Details

Part number:

WSB5518W

Manufacturer:

WillSEMI

File Size:

326.66kb

Download:

📄 Datasheet

Description:

Schottky barrier diode.

WSB5518W Application

• Applications
• Switching circuit
• Middle current rectification Circuit Absolute maximum ratings Parameter Reverse voltage (repeti
