W9954F, (W9953F / W9954F) TV Encoder

m o .c U 4 t e e h GENERAL .
S a atW9954F is a high performance digital The W9953F/ D which converts a 4:2:2 ITU-R 601/656 video encoder .

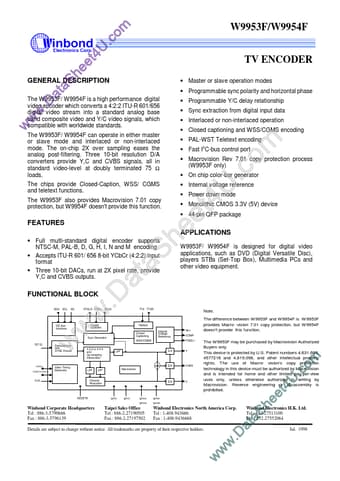

datasheet Preview Page 1 from Datasheet4u.com

W9954F_WinbondElectronics.pdf

W9954F Datasheet Preview — Preview of W9954F PDF

Datasheet Details

Part number:

W9954F

Manufacturer:

Winbond Electronics

File Size:

46.63 KB

Description:

(W9953F / W9954F) TV Encoder

Features

* Full multi-standard digital encoder supports NTSC-M, PAL-B, D, G, H, I, N and M encoding
* Accepts ITU-R 601/ 656 8-bit YCbCr (4:2:2) input format
* Three 10-bit DACs, run at 2X pixel rate, provide Y,C and CVBS outputs. FUNCTIONAL BLOCK SDA SCL AS I2C-bus Interface P[7:

Applications

* W9953F/ W9954F is designed for digital video applications, such as DVD (Digital Versatile Disc), players STBs (Set-Top Box), Multimedia PCs and other video equipment. XTALO XTALI XCLK TTX TTXR Q Note, crystal oscillator Teletext Sync Generator Closed Captioning Internal Voltage Reference
