I5216SD - 8 TO 16 MINUTE VOICE RECORD/PLAYBACK SYSTEM WITH INTEGRATED CODEC

This page provides the datasheet information for the I5216SD, a member of the I52 8 TO 16 MINUTE VOICE RECORD/PLAYBACK SYSTEM WITH INTEGRATED CODEC family.

Datasheet Summary

Description

The ChipCorder I5216 is an 8 to 16 minute Voice and Data Record and Playback system with integrated Voice band CODEC.

The device works on a single 2.7V to 3.3V supply, and has fully integrated system functions, including: AGC, microphone preamplifier, speaker driver, memory and CODEC.

Features

  • Single Supply 2.7 to 3.3 Volt operation Voice and digital data record and playback system on a single chip Industry-leading sound quality Low voltage operation Message management Fully integrated system functions Flexible architecture Nonvolatile message storage Configurable ChipCorder sampling rates of 4 kHz, 5.3kHz, 6.4 kHz and 8kHz 8, 10, 12 and 16 minutes duration External or intern.

📥 Download Datasheet

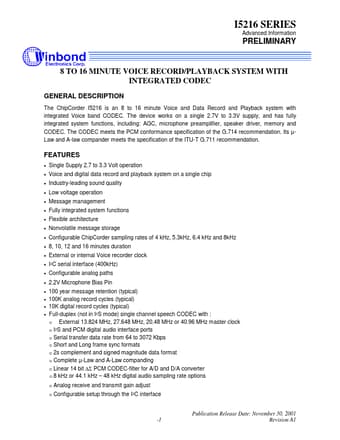

Datasheet preview – I5216SD

Datasheet Details

Part number I5216SD
Manufacturer Winbond
File Size 758.73 KB
Description 8 TO 16 MINUTE VOICE RECORD/PLAYBACK SYSTEM WITH INTEGRATED CODEC
Datasheet download datasheet I5216SD Datasheet
Additional preview pages of the I5216SD datasheet.

📁 Similar Datasheet

Other Datasheets by Winbond
  • I5216S - 8 TO 16 MINUTE VOICE RECORD/PLAYBACK SYSTEM WITH INTEGRATED CODEC
  • I5216SI - 8 TO 16 MINUTE VOICE RECORD/PLAYBACK SYSTEM WITH INTEGRATED CODEC
  • I5216 - 8 TO 16 MINUTE VOICE RECORD/PLAYBACK SYSTEM WITH INTEGRATED CODEC
  • I5216E - 8 TO 16 MINUTE VOICE RECORD/PLAYBACK SYSTEM WITH INTEGRATED CODEC
  • I5216ED - 8 TO 16 MINUTE VOICE RECORD/PLAYBACK SYSTEM WITH INTEGRATED CODEC
  • I5216EI - 8 TO 16 MINUTE VOICE RECORD/PLAYBACK SYSTEM WITH INTEGRATED CODEC
  • I5216P - 8 TO 16 MINUTE VOICE RECORD/PLAYBACK SYSTEM WITH INTEGRATED CODEC
  • I5216X - 8 TO 16 MINUTE VOICE RECORD/PLAYBACK SYSTEM WITH INTEGRATED CODEC

Full PDF Text Transcription

Click to expand full text
I5216 SERIES Advanced Information PRELIMINARY 8 TO 16 MINUTE VOICE RECORD/PLAYBACK SYSTEM WITH INTEGRATED CODEC GENERAL DESCRIPTION The ChipCorder I5216 is an 8 to 16 minute Voice and Data Record and Playback system with integrated Voice band CODEC. The device works on a single 2.7V to 3.3V supply, and has fully integrated system functions, including: AGC, microphone preamplifier, speaker driver, memory and CODEC. The CODEC meets the PCM conformance specification of the G.714 recommendation. Its µLaw and A-law compander meets the specification of the ITU-T G.711 recommendation. FEATURES • • • • • • • • • • • Single Supply 2.7 to 3.
