W89C840AF 100/10Mbps Ethernet Controller

1) PCI Interface Signal Name PCICLK Pin Type I Pin Number 114 PCI Clock Input: W89C840AF supports PCI clock rate ranged from 25Mhz to 33MHz continuously. All PCI signals except RST# and INTA#, are referenced on the rising edge of this clock. RSTB I 112 PCI Hardware reset signal: When asserted(activ.

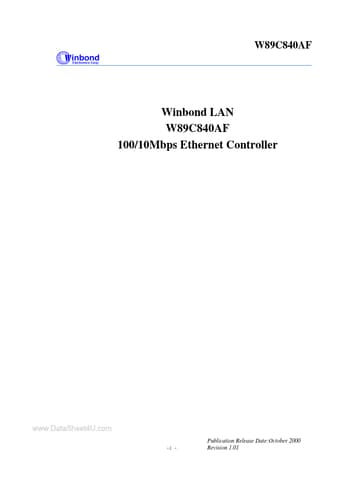

www.DataSheet4U.com W89C840AF Winbond LAN W89C840AF 100/10Mbps Ethernet Controller www.DataSheet4U.com -1 Publication Release Date:October 2000 Revision 1.01 www.DataSheet4U.com W89C840AF www.DataSheet4U.com -2 Publication Release Date:October 2000 Revision 1.01 www.DataSheet4U.com W89C840AF W89C840AF is a highly integrated Ethernet LAN controller for both 100BaseT and 10BaseT Ethernet. It provides a host bus interface complying with the PCI local bus specification revision 2.1, and the.

W89C840AF Features

* l l l l l l l l l l l Complies with IEEE 802.3, 802.3u, ANSI 8802-3 and Ethernet standards Supports PCI bus master mode for DMA operation, fully complying with PCI 2.1 standard Compliant with APCI R1.0, PCI power management R1.0 and Network device Class Power management Reference specification V1.0a
