W89C92 Datasheet - Winbond

PCMCIA ETHERNET NETWORK TWISTED PAIR INTERFACE CONTROLLER

W89C92 Features

* Compatible with IEEE 802.3 10BASE2 and 10BASE5 CMOS process provides low power consumption Mixed-mode circuit design integrates all transceiver electronics except signal and power isolation and minimizes external compon

W89C92 General Description

The W89C92 Transceiver for Coaxial Cable (TCC) serves as an interface between the Attachment Unit Interface and coaxial cable and implements the MAU functions required by a 10BASE2 or 10BASE5. The W89C92 provides transmit, receive, jabber lockup, SQE test, and collision presence functions. The W89C9.

W89C92 Datasheet (184.71 KB)

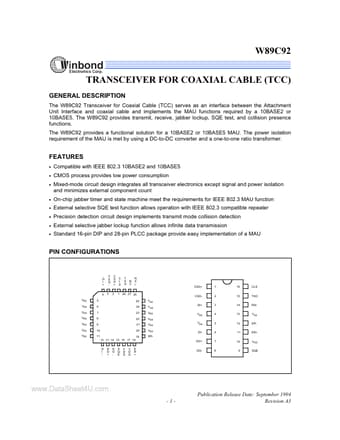

Preview of W89C92 PDF

Datasheet Details

Part number:

W89C92

Manufacturer:

Winbond

File Size:

184.71 KB

Description:

Pcmcia ethernet network twisted pair interface controller.
