W91632, W91630, 10-MEMORY TONE/PULSE DIALER

W91630 SERIES 10-MEMORY TONE/PULSE DIALER WITH REDIAL FUNCTION GENERAL .
The W91630 series are Si-gate CMOS ICs that provide the signals needed for either pulse or tone dialing.

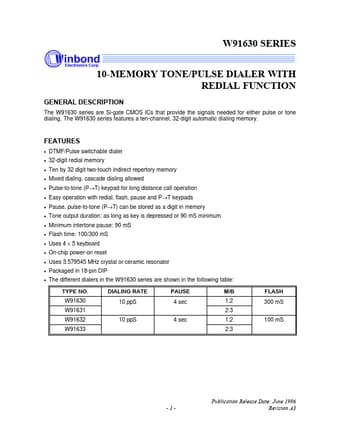

datasheet Preview Page 1 from Datasheet4u.com

W91630-Winbond.pdf

W91632 Datasheet Preview — This datasheet PDF includes multiple part numbers: W91632, W91630. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

W91632, W91630

Manufacturer:

Winbond

File Size:

151.67 KB

Description:

10-MEMORY TONE/PULSE DIALER

Note:

This datasheet PDF includes multiple part numbers: W91632, W91630.
Please refer to the document for exact specifications by model.

Features

* a ten-channel, 32-digit automatic dialing memory. FEATURES
* DTMF/Pulse switchable dialer
* 32-digit redial memory
* Ten by 32 digit two-touch indirect repertory memory
* Mixed dialing, cascade dialing allowed
* Pulse-to-tone (P→T) keypad for long distance c
