MH-Z14

Intelligent Infrared Carbon Dioxide

MH-Z14 Features

* High sensitivity, High resolution

* Low power consumption

* Output modes: UART, analog voltage signal, PWM wave

* Quick response

* Temperature compensation, excellent linear output

* Good stability

* Long lifespan

* Anti-water vapor interference

* No poisoning

MH-Z14 General Description

Vin(input voltage 4.5V~5.5V) GND Vout2 (0.4~2V) Vout1 (0~2.5V) PWM HD NC UART(RXD) 0~3.3V input digital UART(TXD) 0~3.3V output digital 8. Operating instruction 8.1 Analog output connections The output value of Vout1 is 0-2.5V, which stands for 0 to full range. The output value of Vout2 i.

MH-Z14 Datasheet (732.26 KB)

Preview of MH-Z14 PDF

Datasheet Details

Part number:

MH-Z14

Manufacturer:

Winsen

File Size:

732.26 KB

Description:

Intelligent infrared carbon dioxide.

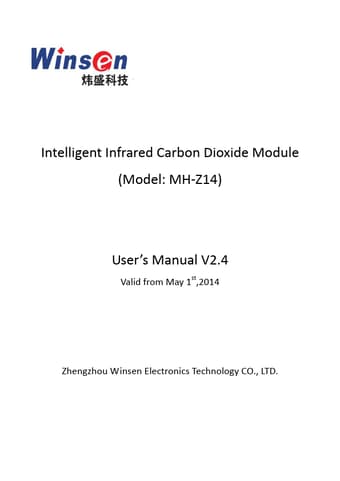

Intelligent Infrared Carbon Dioxide Module (Model: MH-Z14) User’s Manual V2.4 Valid from May 1st,2014 Zhengzhou Winsen Electronics Technology CO., LTD.
