MH-Z16

Intelligent Infrared Gas Module

MH-Z16 Features

* High sensitivity, High resolution, Low power consumption

* Output method: UART, PWM wave and analog (DAC)

* Quick response, Good stability

* Temperature compensation,

* Excellent linear output

* Long lifespan

* Anti-water vapor interference

* No poisoning 3. Application:

MH-Z16 General Description

Vin (Voltage Input) GND Vout(0.4-2V)need to be customized PWM HD (Zero calibration, low level for more than 7 seconds) UART(RXD) 0~3.3V digital input UART(TXD) 0~3.3V digital output 7. Output methods: PWM output Take 0~2000ppm for example CO2 output range 0~2000ppm Cycle 1004ms±5% Cycle star.

MH-Z16 Datasheet (709.15 KB)

Preview of MH-Z16 PDF

Datasheet Details

Part number:

MH-Z16

Manufacturer:

Winsen

File Size:

709.15 KB

Description:

Intelligent infrared gas module.

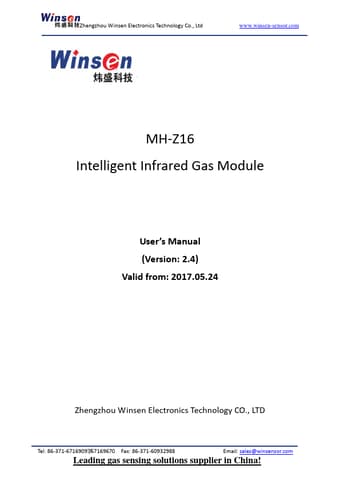

Zhengzhou Winsen Electronics Technology Co., Ltd www.winsen-sensor.com MH-Z16 Intelligent Infrared Gas Module User’s Manual (Version: 2.4) Valid fro.
