WSR7N65F Datasheet - Winsok

WSR7N65F N-Ch MOSFET

The WSR7N65F is the highest performance trench N-Ch MOSFET with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSR7N65F meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliabil.

WSR7N65F Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Product Summery BVDSS RDSON ID 650V 1000mΩ 7A Applications z AC/DC Power Conversion in Switched Mode Power Supplies (SMPS). z Uninterruptible Power Supply(UPS) z

WSR7N65F-Winsok.pdf

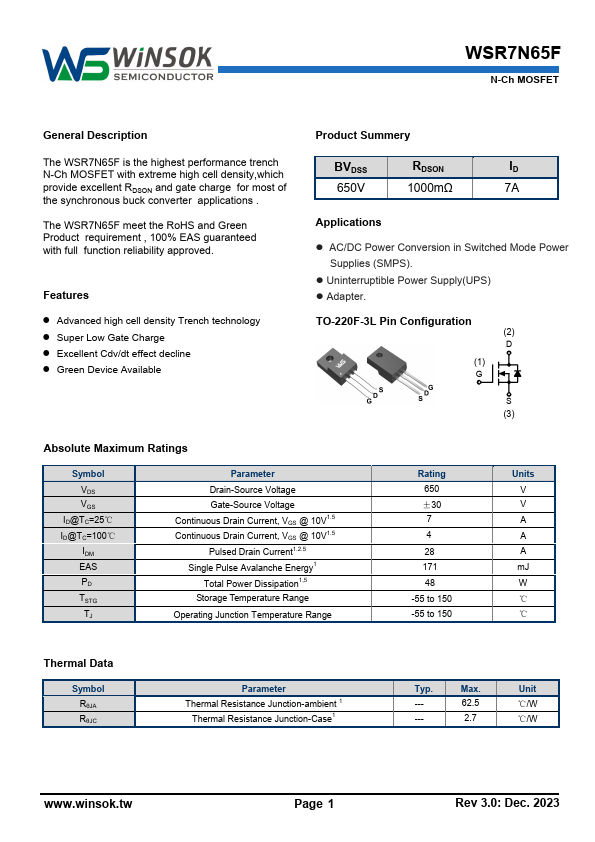

Preview of WSR7N65F PDF

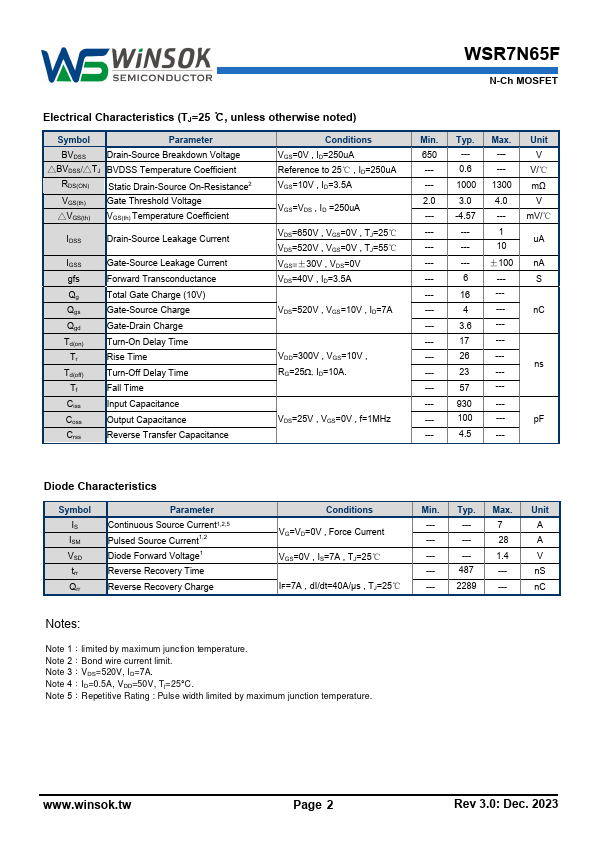

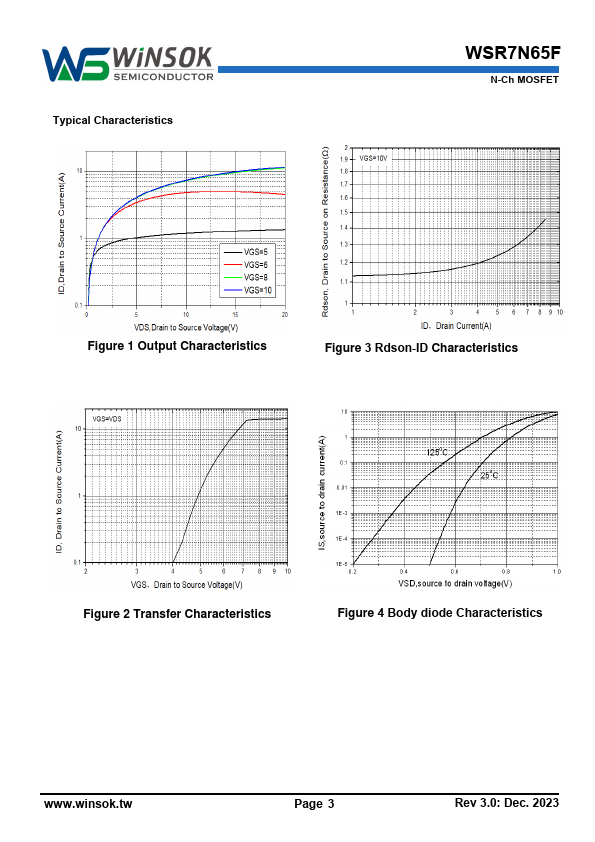

WSR7N65F Datasheet Preview Page 2 WSR7N65F Datasheet Preview Page 3

Datasheet Details

Part number:

WSR7N65F

Manufacturer:

Winsok

File Size:

2.98 MB

Description:

N-ch mosfet.
