WSR80N08 Datasheet - Winsok

WSR80N08 N-Ch MOSFET

The WSR80N08 is the highest performance trench N-ch MOSFET with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSR80N08 meet the RoHS and Green Product requirement,100% EAS guaranteed with full function reliabilit.

WSR80N08 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS 80V RDSON 8.4mΩ ID 80A Applications z Power Management z DC/DC Converter z Load Switch TO-220-3L Pin Configuration (2)

WSR80N08-Winsok.pdf

Preview of WSR80N08 PDF

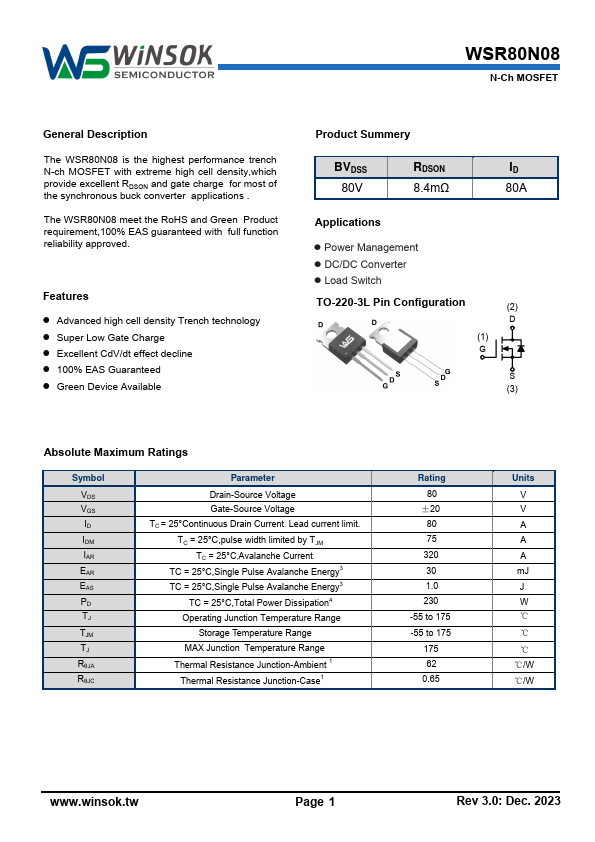

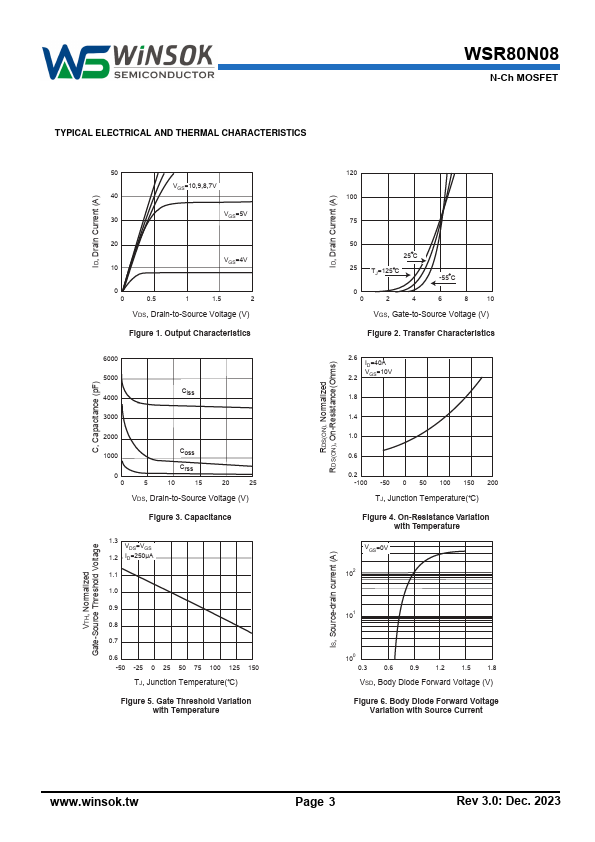

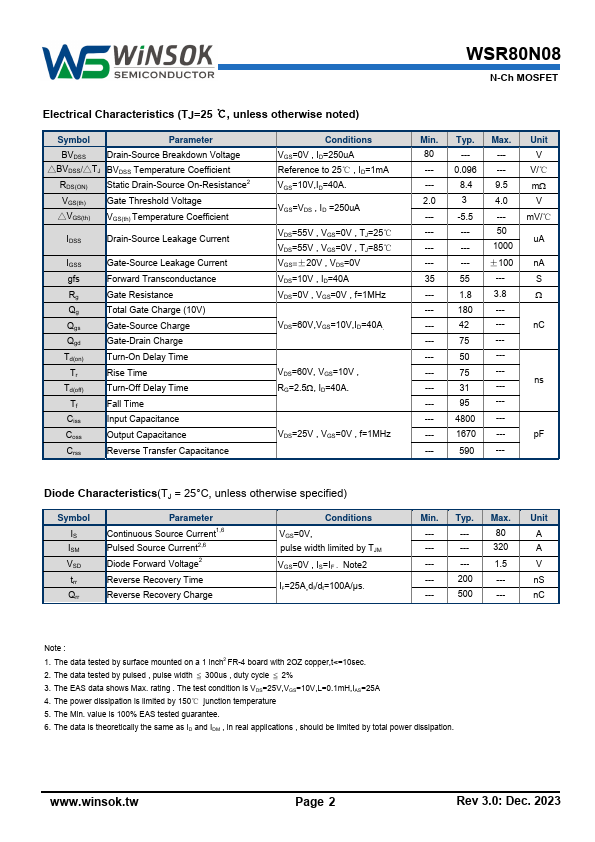

WSR80N08 Datasheet Preview Page 2 WSR80N08 Datasheet Preview Page 3

Datasheet Details

Part number:

WSR80N08

Manufacturer:

Winsok

File Size:

1.99 MB

Description:

N-ch mosfet.
