WM2604

Quad 10-Bit Serial Input Voltage Output DAC

WM2604 Features

* Four 10-bit voltage output DACs Dual 2.7V to 5.5V supply (separate digital and analogue supplies) DNL ± 0.1 LSB, INL ± 0.4 LSB Low power consumption: - 5.5mW, slow mode - 5V supply - 3.3mW, slow mode - 3V supply TMS320, (Q)SPI™ , and Microwire™ compatible seri

WM2604 General Description

The WM2604 is a quadruple 10-bit voltage output, resistor string, digital-to-analogue converter. Each DAC can be individually powered down under software control. A hardware controlled mode is provided that powers down all DACs. Power down reduces current consumption to 10nA. The device has been des.

WM2604 Datasheet (103.93 KB)

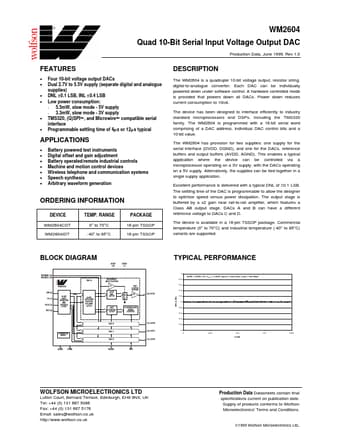

Preview of WM2604 PDF

Datasheet Details

Part number:

WM2604

Manufacturer:

Wolfson Microelectronics plc

File Size:

103.93 KB

Description:

Quad 10-bit serial input voltage output dac.
