WM5628 Datasheet - Wolfson Microelectronics plc

WM5628 3 & 5V Octal 8-Bit Voltage Output DAC with Serial Interface

WM5628L and WM5628 are Octal 8-bit digital to analogue converters (DAC) controlled via a serial interface. Each DAC's output voltage range is programmable for either x1 or x 2 its reference input voltage, allowing near rail to rail operation for the x 2 output range. High impedance buffered voltage .

WM5628 Features

* Eight 8-bit voltage output DAC's Three wire serial interface Programmable x1 or x 2 output range. Power-on-reset sets outputs to zero Buffered voltage reference inputs Simultaneous DAC output update Key Specifications

* Single supp

WM5628_WolfsonMicroelectronicsplc.pdf

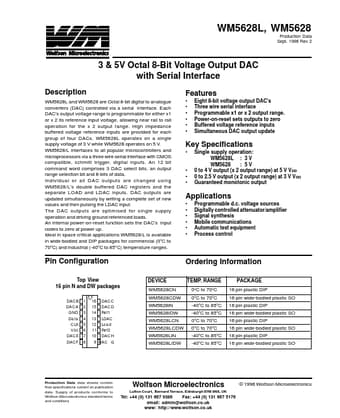

Preview of WM5628 PDF
WM5628 Datasheet Preview Page 2 WM5628 Datasheet Preview Page 3

Datasheet Details

Part number:

WM5628

Manufacturer:

Wolfson Microelectronics plc

File Size:

370.45 KB

Description:

3 & 5v octal 8-bit voltage output dac with serial interface.
