WM8181 Datasheet, Digitiser, Wolfson Microelectronics plc

WM8181 Features

  • Digitiser
  • 12-bit 2MSPS ADC
  • No missing codes
  • Serial output
  • Simple clocking
  • Internal or external ADC reference range control
  • Accepts posi

PDF File Details

Part number:

WM8181

Manufacturer:

Wolfson Microelectronics plc

File Size:

141.67kb

Download:

📄 Datasheet

Description:

12-bit 2msps serial output cis/ccd digitiser. The WM8181 is a 12-bit resolution, 2MSPS single channel image digitiser which is designed for easy interface to either CIS or CCD lin

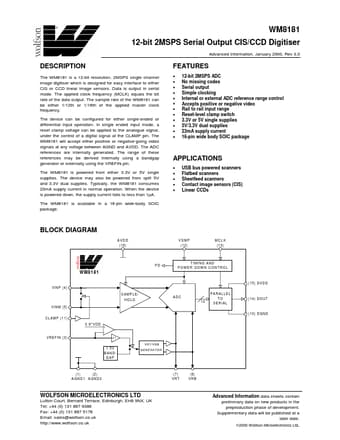

Datasheet Preview: WM8181 📥 Download PDF (141.67kb)
Page 2 of WM8181 Page 3 of WM8181

WM8181 Application

  • Applications
  • USB bus powered scanners
  • Flatbed scanners
  • Sheetfeed scanners
  • Contact image sensors (CIS)
  • <
