CAB530M12BM3T, CAB530M12BM3 - All-Silicon Carbide Half-Bridge Module

Wolfspeed

📥 Download Datasheet

CAB530M12BM3T Datasheet Preview — This datasheet PDF includes multiple part numbers: CAB530M12BM3T, CAB530M12BM3. Please refer to the document for exact specifications by model.

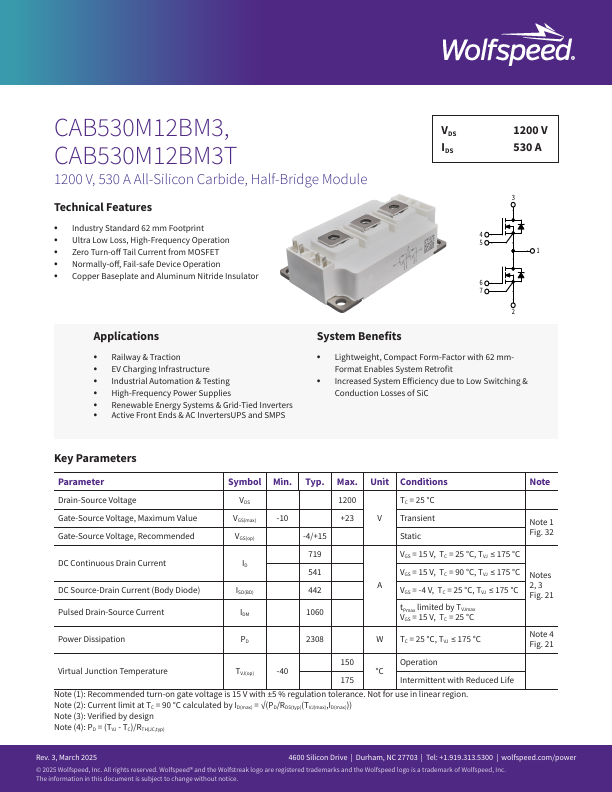

datasheet Preview Page 2

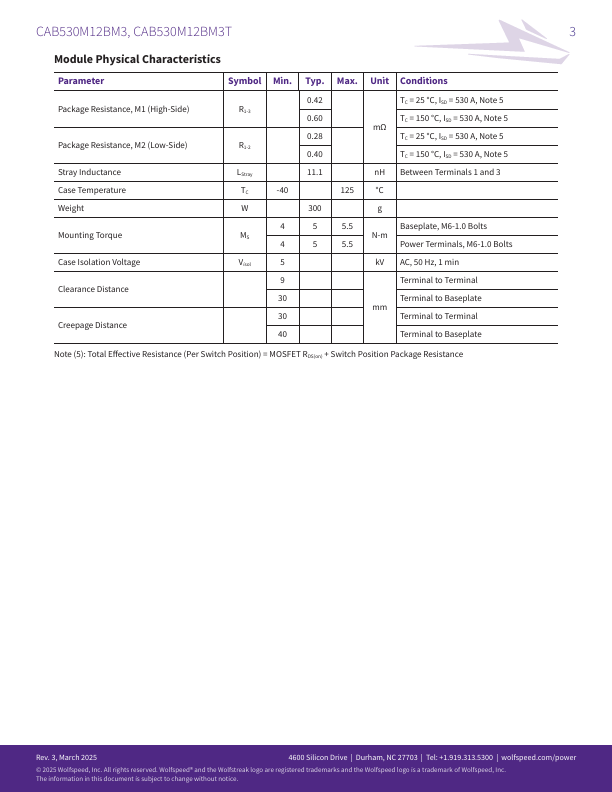

datasheet Preview Page 3

Datasheet Details

Part number	CAB530M12BM3T, CAB530M12BM3
Manufacturer	Wolfspeed
File Size	3.10 MB
Description	All-Silicon Carbide Half-Bridge Module
Datasheet	CAB530M12BM3-Wolfspeed.pdf
Note	This datasheet PDF includes multiple part numbers: CAB530M12BM3T, CAB530M12BM3. Please refer to the document for exact specifications by model.

CAB530M12BM3T Product details

Features

Industry Standard 62 mm Footprint.
Ultra Low Loss, High-Frequency Operation B.
Zero Turn-off Tail Current from MOSFET.
Normally-off, Fail-safe Device Operation.
Copper Baseplate and Aluminum Nitride Insulator G2 VDS K2 IDS 1200 V V5- 30 A 3 4 5 1 6 7 2.
