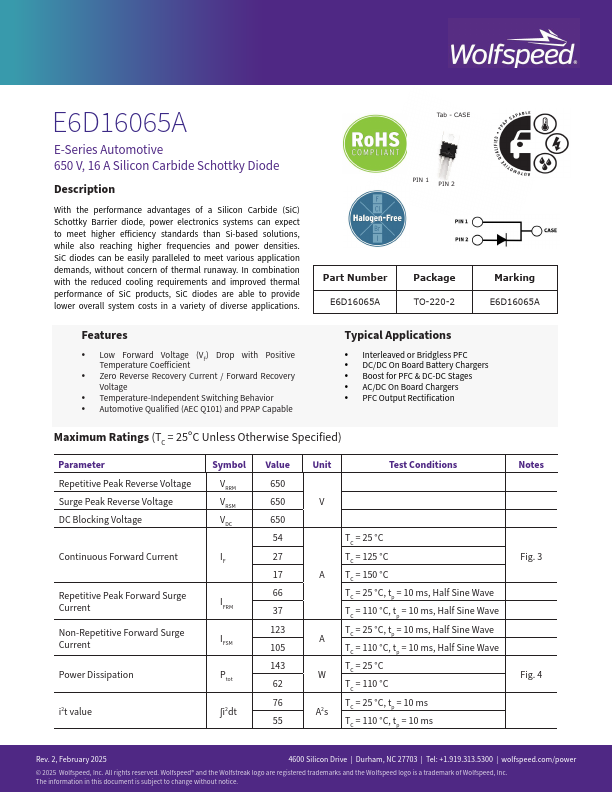

E6D16065A - 16A Silicon Carbide Schottky Diode

Wolfspeed

E6D16065A Datasheet Preview — Preview of E6D16065A PDF

Datasheet Details

Part number	E6D16065A
Manufacturer	Wolfspeed
File Size	631.62 KB
Description	16A Silicon Carbide Schottky Diode
Datasheet	E6D16065A-Wolfspeed.pdf

E6D16065A Product details

Description

With the performance advantages of a Silicon Carbide (SiC) Schottky Barrier diode, power electronics systems can expect to meet higher efficiency standards than Si-based solutions, while also reaching higher frequencies and power densities.

Features

Low Forward Voltage (VF) Drop with Positive Temperature Coefficient.
Zero Reverse Recovery Current / Forward Recovery Voltage.
Temperature-Independent Switching Behavior.
Automotive Qualified (AEC Q101) and PPAP Capable Typical.
