E6D20065D Datasheet - Wolfspeed

20A Silicon Carbide Schottky Diode

E6D20065D Features

* Low Forward Voltage (VF) Drop with Positive Temperature Coefficient

* Zero Reverse Recovery Current / Forward Recovery Voltage

* Temperature-Independent Switching Behavior

* Automotive Qualified (AEC Q101) and PPAP Capable Typical Applications

* Automotive

E6D20065D General Description

With the performance advantages of a Silicon Carbide (SiC) Schottky Barrier diode, power electronics systems can expect to meet higher efficiency standards than Si-based solutions, while also reaching higher frequencies and power densities. SiC diodes can be easily paralleled to meet various applica.

E6D20065D Datasheet (566.86 KB)

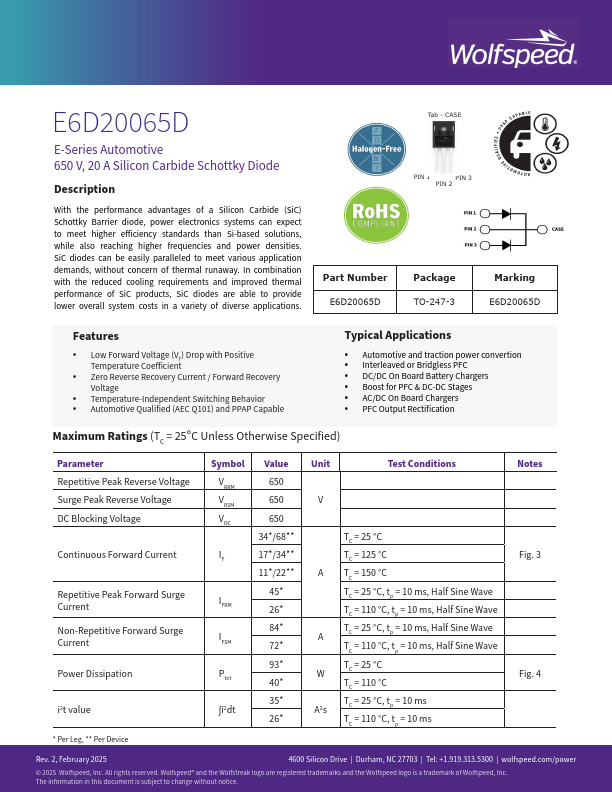

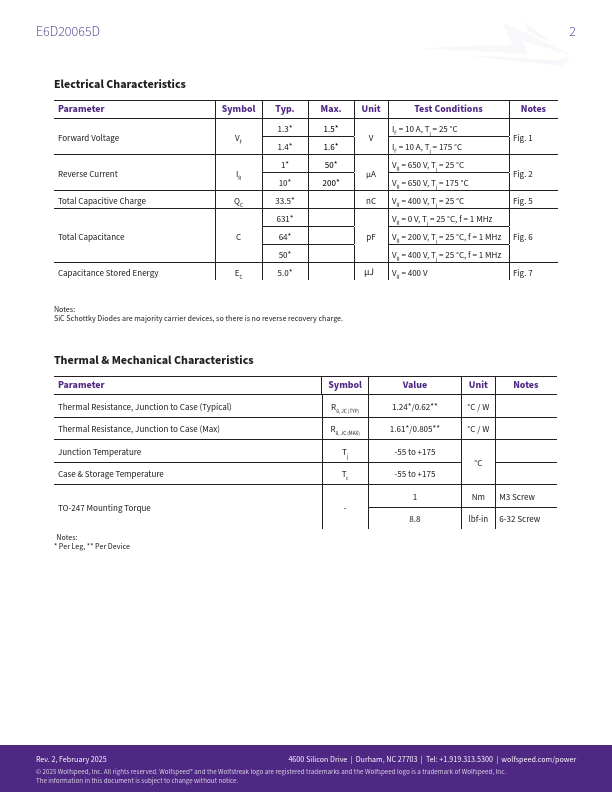

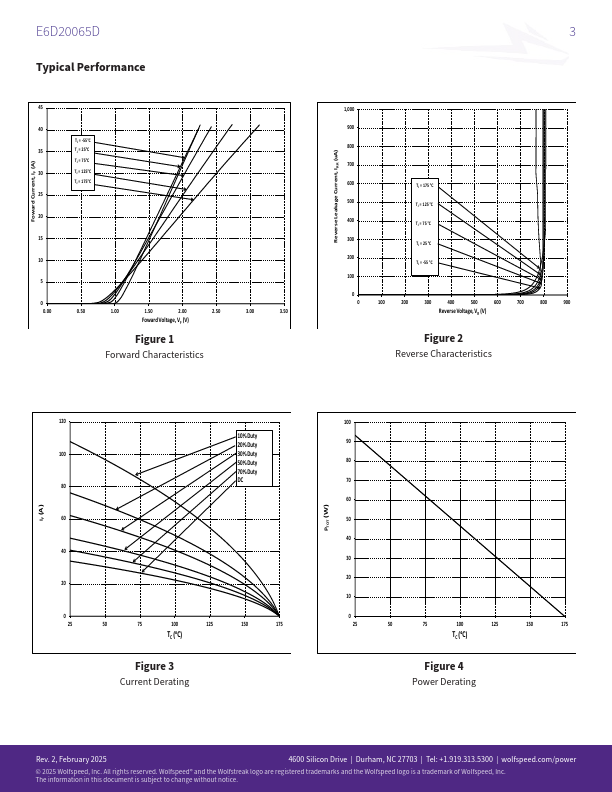

E6D20065D Datasheet Preview — Preview of E6D20065D PDF

Datasheet Details

Part number:

E6D20065D

Manufacturer:

Wolfspeed

File Size:

566.86 KB

Description:

20a silicon carbide schottky diode.
