HAS310M17BM3 Half-Bridge Module

HAS310M17BM3 Description

HAS310M17BM3, 5 HAS310M17BM3T 1700 V, 310 A, Silicon Carbide, Half-Bridge Module D Technical .

HAS310M17BM3 Features

* Industry Standard 62 mm Footprint
* Housing CTI ≥ 600 (Material Group I)
* Compliant with EN45545-2 R22/23 HL3
* High Humidity Operation THB-80 (HV-H3TRB)
* Low Inductance Design Optimized for SiC
* Ultra Low Loss, High-Frequency Operation

HAS310M17BM3 Applications

* Railway Auxiliary & Traction
* Induction Heating
* Motor Drives
* Renewables
* EV Fast Charging
* UPS and SMPS System Benefits 3
* 62 mm Form Factor Enables System Retrofit
* Increased System Efficiency, due to Low Switching & Cond

📥 Download Datasheet

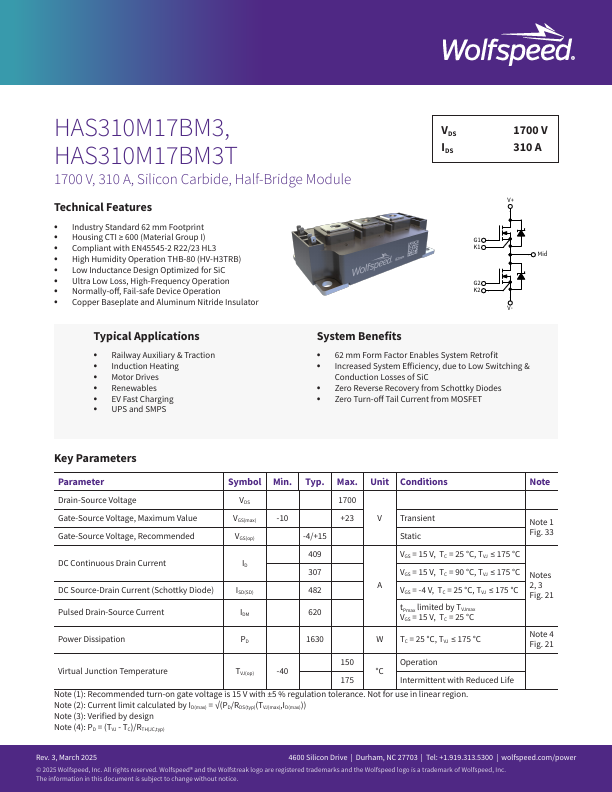

Preview of HAS310M17BM3 PDF

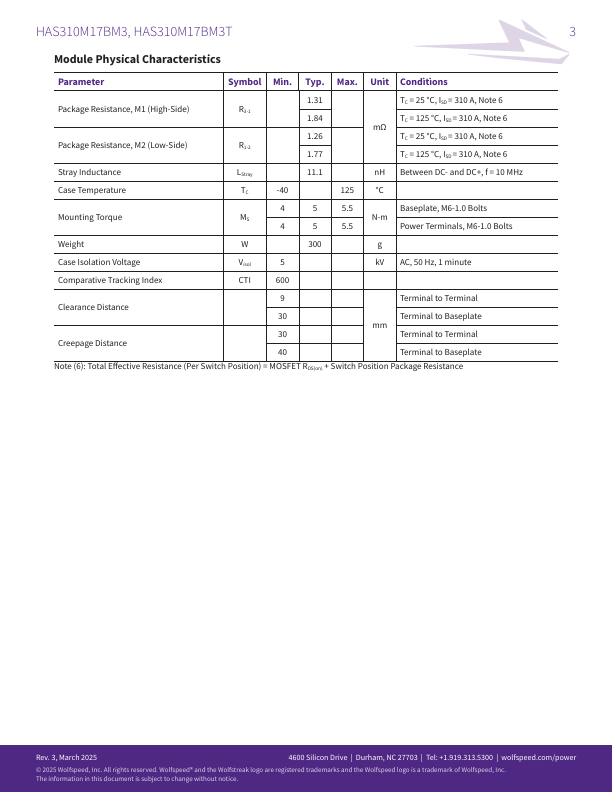

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HAS310M17BM3
Manufacturer
Wolfspeed
File Size
3.29 MB
Datasheet
HAS310M17BM3-Wolfspeed.pdf
Description
Half-Bridge Module
