HAS530M12BM3T, HAS530M12BM3 1200V 530A Half-Bridge Module

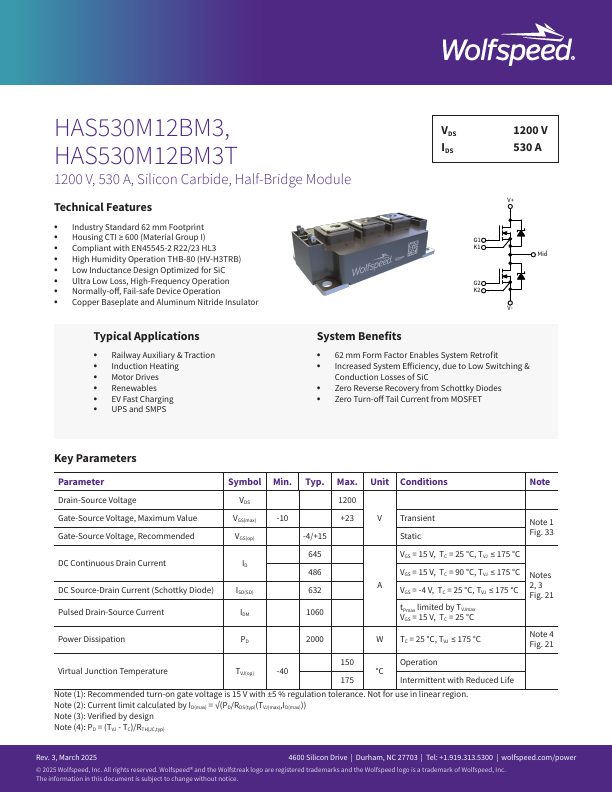

HAS530M12BM3T Description

HAS530M12BM3, 5 HAS530M12BM3T 1200 V, 530 A, Silicon Carbide, Half-Bridge Module D Technical .

HAS530M12BM3T Features

* Industry Standard 62 mm Footprint
* Housing CTI ≥ 600 (Material Group I)
* Compliant with EN45545-2 R22/23 HL3
* High Humidity Operation THB-80 (HV-H3TRB)
* Low Inductance Design Optimized for SiC
* Ultra Low Loss, High-Frequency Operation

HAS530M12BM3T Applications

* Railway Auxiliary & Traction
* Induction Heating
* Motor Drives
* Renewables
* EV Fast Charging
* UPS and SMPS System Benefits 3
* 62 mm Form Factor Enables System Retrofit
* Increased System Efficiency, due to Low Switching & Cond

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HAS530M12BM3T, HAS530M12BM3. Please refer to the document for exact specifications by model.

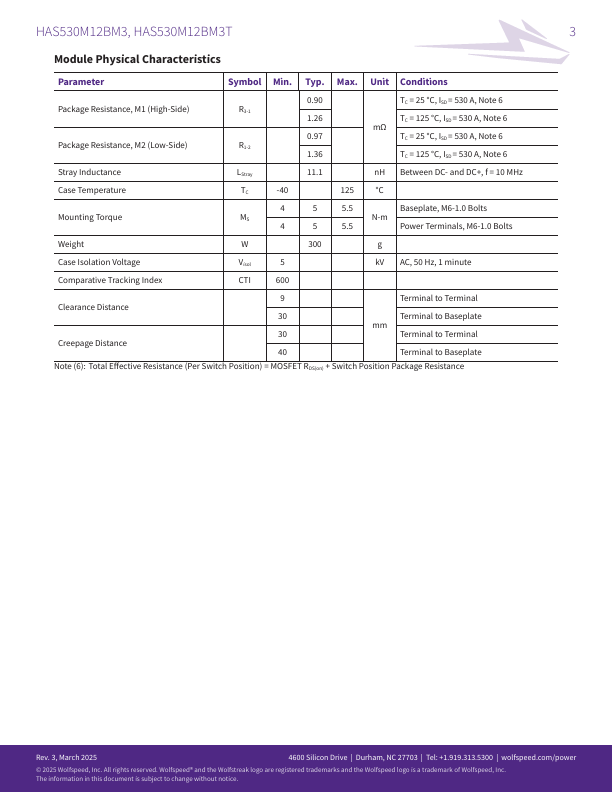

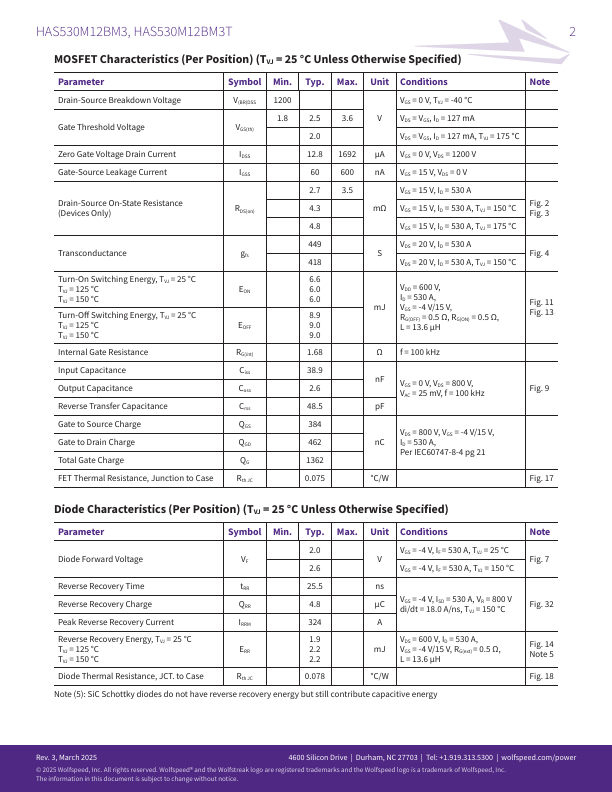

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HAS530M12BM3T, HAS530M12BM3
Manufacturer
Wolfspeed
File Size
3.32 MB
Datasheet
HAS530M12BM3-Wolfspeed.pdf
Description
1200V 530A Half-Bridge Module
Note
This datasheet PDF includes multiple part numbers: HAS530M12BM3T, HAS530M12BM3.
Please refer to the document for exact specifications by model.
