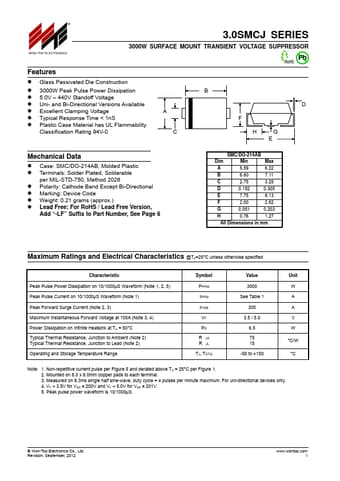

3.0SMCJ20, 3.0SMCJ5.0-Won - 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Won-Top Electronics

Datasheet Details

Part number: 3.0SMCJ20, 3.0SMCJ5.0-Won
Manufacturer: Won-Top Electronics
File Size: 96.53 KB
Datasheet: 3.0SMCJ5.0-Won-TopElectronics.pdf
Description: 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Note: This datasheet PDF includes multiple part numbers: 3.0SMCJ20, 3.0SMCJ5.0-Won.
Please refer to the document for exact specifications by model.

Glass Passivated Die Construction.
3000W Peak Pulse Power Dissipation.
5.0V.
440V Standoff Voltage.
Uni- and Bi-Directional Versions Available.
Excellent Clamping Voltage.
Typical Response Time < 1nS.
Plastic Case Material has UL Flammability Classification Rating 94V-0 A C B F H G E D Mechanical Data.
Case: SMC/DO-214AB, Molded Plastic.
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
Polarity: Cathode Band Exce.
