SA30, SA30-Won - 500W TRANSIENT VOLTAGE SUPPRESSOR

Won-Top Electronics

Datasheet Details

Part number	SA30, SA30-Won
Manufacturer	Won-Top Electronics
File Size	92.16 KB
Description	500W TRANSIENT VOLTAGE SUPPRESSOR

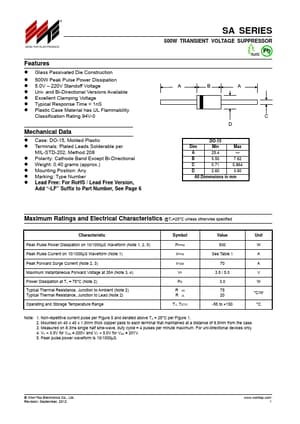

Datasheet	SA30-Won-TopElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: SA30, SA30-Won. Please refer to the document for exact specifications by model.

Glass Passivated Die Construction.
500W Peak Pulse Power Dissipation.
5.0V.
220V Standoff Voltage.
Uni- and Bi-Directional Versions Available.
Excellent Clamping Voltage.
Typical Response Time < 1nS.
Plastic Case Material has UL Flammability Classification Rating 94V-0 Mechanical Data.
Case: DO-15, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band Except Bi-Directional.
Weight: 0.
