WS2815B-V3 - Intelligent control LED

WorldSemi

📥 Download Datasheet

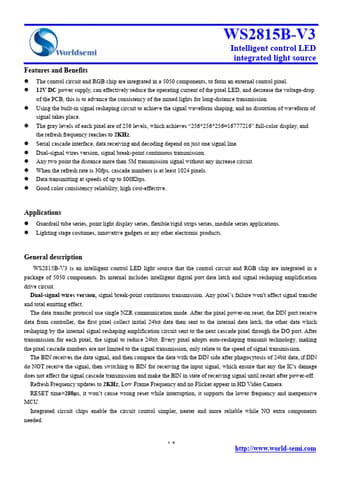

WS2815B-V3 Datasheet Preview — Preview of WS2815B-V3 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	WS2815B-V3
Manufacturer	WorldSemi
File Size	757.17 KB
Description	Intelligent control LED
Datasheet	WS2815B-V3-WorldSemi.pdf

WS2815B-V3 Product details

Description

WS2815B-V3 is an intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components.

Features

The control circuit and RGB chip are integrated in a 5050 components, to form an external control pixel.
12V DC power supply, can effectively reduce the operating current of the pixel LED, and decrease the voltage-drop of the PCB, this is to advance the consistency of the mixed lights for long-distance transmission.
Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of waveform of signal takes place.
The gray levels of ea.
