WS2812C Datasheet - Worldsemi

Intelligent control LED

WS2812C Features

* Operating Current of 5mA, the brightness reduced to one-third of the original, it’s preferred for portable electronic devices.

* WS2812C is fully compatible with WS2812B.

* The control circuit and the LED share the same power source.

* Control circuit and RGB chip are integrated in

WS2812C General Description

WS2812C is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V vol.

WS2812C Datasheet (507.16 KB)

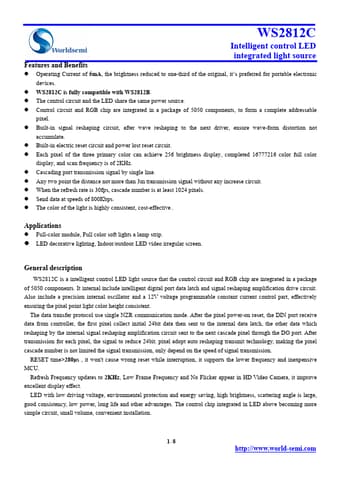

Preview of WS2812C PDF

Datasheet Details

Part number:

WS2812C

Manufacturer:

Worldsemi

File Size:

507.16 KB

Description:

Intelligent control led.
