YD1022 Datasheet, amplifier equivalent, WuXi YouDa Electronics

YD1022 Features

• Amplifier
• Operation supply voltage range: Vcc=8V～18V
• High Power: Po=10W (Vcc=16.5V，RL=2Ω，f=1kHz，THD=10%) Po=6W (Vcc=16.5V，RL=4Ω，f=1kHz，THD=10%)
• Low popping noise at pow

PDF File Details

Part number:

YD1022

Manufacturer:

WuXi YouDa Electronics

File Size:

176.98kb

Download:

📄 Datasheet

Description:

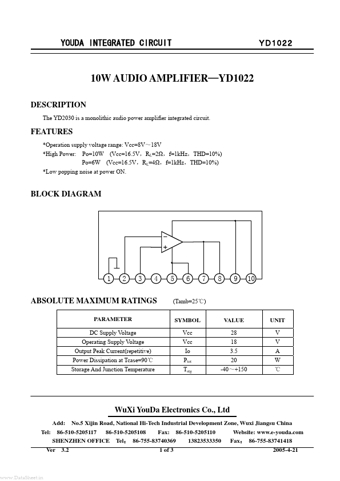

10w audio amplifier. The YD2030 is a monolithic audio power amplifier integrated circuit. FEATURES

Operation supply voltage range: Vcc=8V～18V

TAGS

YD1022

WuXi YouDa Electronics
