YD1007 Datasheet, amplifier equivalent, Wuxi Youda Electronics

YD1007 Features

• Amplifier
• High output power;
• High current capability;
• AC short circuit protection;
• Thermal overload protection. BLOCK DIAGRAM 3 FIL 5 8 vcc w w w t a .D

PDF File Details

Part number:

YD1007

Manufacturer:

Wuxi Youda Electronics

File Size:

251.42kb

Download:

📄 Datasheet

Description:

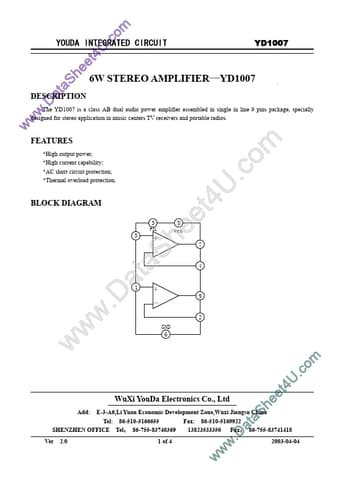

6w stereo amplifier. a D . YD1007 is a class AB dual audio power amplifier assembled in single in line 9 pins package, specially The w designed for stereo
