YD1316 Datasheet - Wuxi Youda electronics

YD1316, 2W DUAL CHANNEL AUDIO POWER AMPLIFIER

www.DataSheet4U.com YOUDA INTEGRATED CIRCUIT YD1316 2W DUAL CHANNEL AUDIO POWER AMPLIFIER *YD1316 .
The YD1316 is a monolithic integrated circuit designed for the audio amplifier in tape recorders and radio. Wide operating voltage (Vcc.

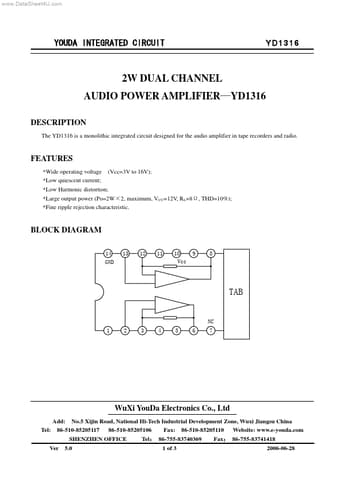

datasheet Preview Page 1 from Datasheet4u.com

YD1316_WuxiYoudaelectronics.pdf

YD1316 Datasheet Preview — Preview of YD1316 PDF

Datasheet Details

Part number:

YD1316

Manufacturer:

Wuxi Youda electronics

File Size:

94.43 KB

Description:

2W DUAL CHANNEL AUDIO POWER AMPLIFIER

Features

* Wide operating voltage (Vcc=3V to 16V);
* Low quiescent current;
* Low Harmonic distortion;
* Large output power (Po=2W×2, maximum, VCC=12V, RL=8Ω, THD=10%);
* Fine ripple rejection characteristic. BLOCK DIAGRAM 14 GND 13 12 11 10 9 Vcc 8 TAB NC 1 2 3 4 5 6 7 WuXi YouDa Electroni
