1N4006WS - Surface Mount Ultra Fast Rectifier

This page provides the datasheet information for the 1N4006WS, a member of the 1N4001WS Surface Mount Ultra Fast Rectifier family.

Datasheet Summary

Features

  • SOD-323.
  • Low profile space.
  • Ideal for automated placement.
  • Glass passivated chip junctions.
  • Low forward voltage drop.
  • Low leakage current.
  • High forward surge capability.
  • High temperature soldering： 260℃/10 seconds at terminals Mechanical Data.
  • Case: SOD-323 molded plastic body over glass passivated chip I.
  • Terminals: Solder plated, solderable per JESD22-B102.
  • Polarity: Laser band denotes cathode end Major Ratings and Characteristics IF.

📥 Download Datasheet

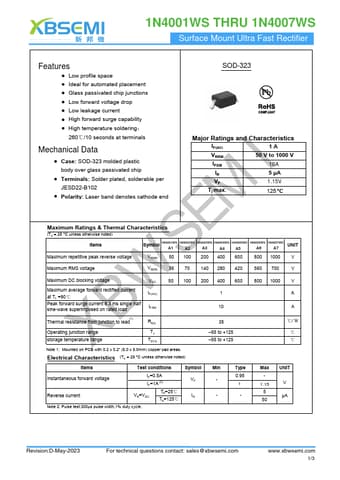

Datasheet preview – 1N4006WS

Datasheet Details

Part number 1N4006WS
Manufacturer XBSEMI
File Size 614.52 KB
Description Surface Mount Ultra Fast Rectifier
Datasheet download datasheet 1N4006WS Datasheet
Additional preview pages of the 1N4006WS datasheet.

📁 Similar Datasheet

  • 1N4006WS - Rectifier (TRR)
  • 1N4006WS - Surface Mount Glass Passivated Standard Rectifier (YFW)
  • 1N4006WS - Surface Mount Standard Rectifiers (GOODWORK)
  • 1N4006W - Surface Mount General Purpose Silicon Rectifiers (SEMTECH)
  • 1N4006W - SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIERS (MIC)
  • 1N4006W - SURFACE GENERAL PURPOSE RECTIFIERS (Rectron)
  • 1N4006W - Surface Mount General Purpose Silicon Rectifiers (BLUE ROCKET ELECTRONICS)
  • 1N4006W - Surface Mount General Purpose Silicon Rectifiers (Jingdao Microelectronics)
  • 1N4006W - Surface Mount General Purpose Silicon Rectifiers (EIC)
  • 1N4006W - Surface Mount General Purpose Silicon Rectifiers (LEADING-TECH)
Other Datasheets by XBSEMI
  • 1N4001WS - Surface Mount Ultra Fast Rectifier
  • 1N4002WS - Surface Mount Ultra Fast Rectifier
  • 1N4003WS - Surface Mount Ultra Fast Rectifier
  • 1N4004WS - Surface Mount Ultra Fast Rectifier
  • 1N4005WS - Surface Mount Ultra Fast Rectifier
  • 1N4007WS - Surface Mount Ultra Fast Rectifier

Full PDF Text Transcription

Click to expand full text
1N4001WS THRU 1N4007WS Surface Mount Ultra Fast Rectifier Features SOD-323 ● Low profile space ● Ideal for automated placement ● Glass passivated chip junctions ● Low forward voltage drop ● Low leakage current ● High forward surge capability ● High temperature soldering： 260℃/10 seconds at terminals Mechanical Data ● Case: SOD-323 molded plastic body over glass passivated chip I ● Terminals: Solder plated, solderable per JESD22-B102 ● Polarity: Laser band denotes cathode end Major Ratings and Characteristics IF(AV) 1A VRRM 50 V to 1000 V IFSM 10A IR 5 μA VF 1.15V Tj max.
