DBF310A, DBF31A - SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

📥 Download Datasheet

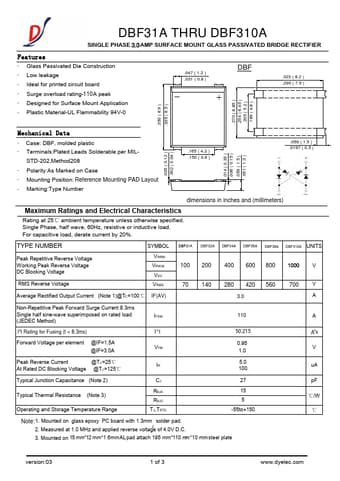

DBF310A Datasheet Preview — This datasheet PDF includes multiple part numbers: DBF310A, DBF31A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: DBF310A, DBF31A
Manufacturer: XINNUO
File Size: 413.16 KB
Datasheet: DBF31A-XINNUO.pdf
Description: SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Note: This datasheet PDF includes multiple part numbers: DBF310A, DBF31A.
Please refer to the document for exact specifications by model.

DBF310A Product details

Features

Glass Passivated Die Construction.
Low leakage.
Ideal for printed circuit board.
Surge overload rating-110A peak.
Designed for Surface Mount Application.
Plastic Material-UL Flammability 94V-0 .047 ( 1.2 ) .031 ( 0.8 ) - + DBF .323 ( 8.2 ) .295 ( 7.5 ) .270 ( 6.85 ) .254 ( 6.45 ) .205 ( 5.2 ) .189 ( 4.8 ) .350 ( 8.9 ) .335 ( 8.5 ) Mechanical Data.
Case: DBF, molded plastic.
Terminals:Plated Leads Solderable per MIL- STD-202,Method208.
Polar.
