DBF32A - SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

This page provides the datasheet information for the DBF32A, a member of the DBF31A SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER family.

Datasheet Summary

Features

  • Glass Passivated Die Construction.
  • Low leakage.
  • Ideal for printed circuit board.
  • Surge overload rating-110A peak.
  • Designed for Surface Mount.

📥 Download Datasheet

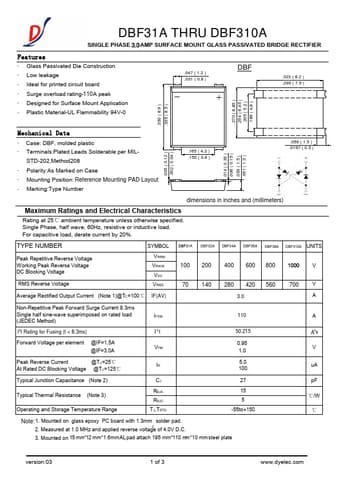

Datasheet preview – DBF32A

Datasheet Details

Part number DBF32A
Manufacturer XINNUO
File Size 413.16 KB
Description SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Datasheet download datasheet DBF32A Datasheet
Additional preview pages of the DBF32A datasheet.

📁 Similar Datasheet

  • DBF32 - 3A Bridge Rectifiers (CITC)
  • DBF31 - 3A Bridge Rectifiers (CITC)
  • DBF310 - 3A Bridge Rectifiers (CITC)
  • DBF310 - 3A SURFACE MOUNT BRIDGE RECTIFIER (DIODES)
  • DBF34 - 3A Bridge Rectifiers (CITC)
  • DBF36 - 3A Bridge Rectifiers (CITC)
  • DBF38 - 3A Bridge Rectifiers (CITC)
  • DBF10 - 1.0A Single-Phase Bridge Rectifier (Sanyo Semicon Device)
  • DBF150 - 15A Single-Phase Bridge Rectifier (Sanyo Semicon Device)
  • DBF20 - 2.0A Single-Phase Bridge Rectifier (Sanyo Semicon Device)
Other Datasheets by XINNUO
  • DBF310A - SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
  • DBF31A - SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
  • DBF34A - SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
  • DBF36A - SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
  • DBF38A - SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text
DBF31A THRU DBF310A SINGLE PHASE 3.0 AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER Features · Glass Passivated Die Construction · Low leakage · Ideal for printed circuit board · Surge overload rating-110A peak · Designed for Surface Mount Application · Plastic Material-UL Flammability 94V-0 .047 ( 1.2 ) .031 ( 0.8 ) - + DBF .323 ( 8.2 ) .295 ( 7.5 ) .270 ( 6.85 ) .254 ( 6.45 ) .205 ( 5.2 ) .189 ( 4.8 ) .350 ( 8.9 ) .335 ( 8.5 ) Mechanical Data · Case: DBF, molded plastic · Terminals:Plated Leads Solderable per MIL- STD-202,Method208 · Polarity:As Marked on Case · Mounting Position: Reference Mounting PAD Layout · Marking:Type Number .005 ( 0.12 ) .002 ( 0.04 ) .165 ( 4.2 ) .150 ( 3.8 ) .014 ( 0.35 ) .006 ( 0.15 ) .059 ( 1.5 ) .051 ( 1.3 ) .059 ( 1.5 ) .0197 ( 0.
