XL8002 - 80V 1A High Efficiency Buck PFM LED Constant Current Driver

General Description

The XL8002 is a monolithic high voltage switching regulator with PFM that is specifically designed to operate from a 12V~80V DC power supply.

The XL8002 is a high efficiency LED driver switching regulator.

Key Features

  • Operation Voltage DC 12V~80V.
  • 0.1V current sense voltage reference.
  • Directly drive 1~18 Series 1W/3W LED.
  • Excellent line and load regulation.
  • Internal Optimize Power HV-MOSFET.
  • Built in Thermal Shutdown Function.
  • Built in Current Limiting Function.
  • Built in Soft-Start Circuit.
  • Available in TO263-5L package.
  • Up to 98% efficiency. General.

📥 Download Datasheet

Datasheet Details

Part number XL8002
Manufacturer XLSEMI
File Size 266.69 KB
Description 80V 1A High Efficiency Buck PFM LED Constant Current Driver
Datasheet download datasheet XL8002 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by XLSEMI

Part Number Description
XL8001 80V 0.5A High Efficiency Buck PFM LED Constant Current Driver
XL8003 80V 0.5A Switching Current Buck PFM LED Constant Current Driver
XL8004 80V 1A Switching Current Buck PFM LED Constant Current Driver
XL8005 100V 0.5A Switching Current Buck PFM LED Constant Current Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

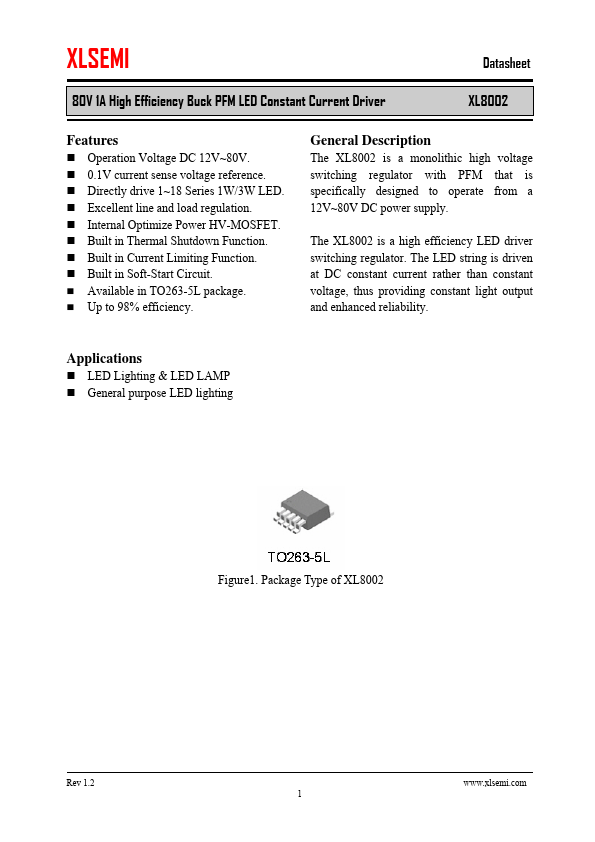

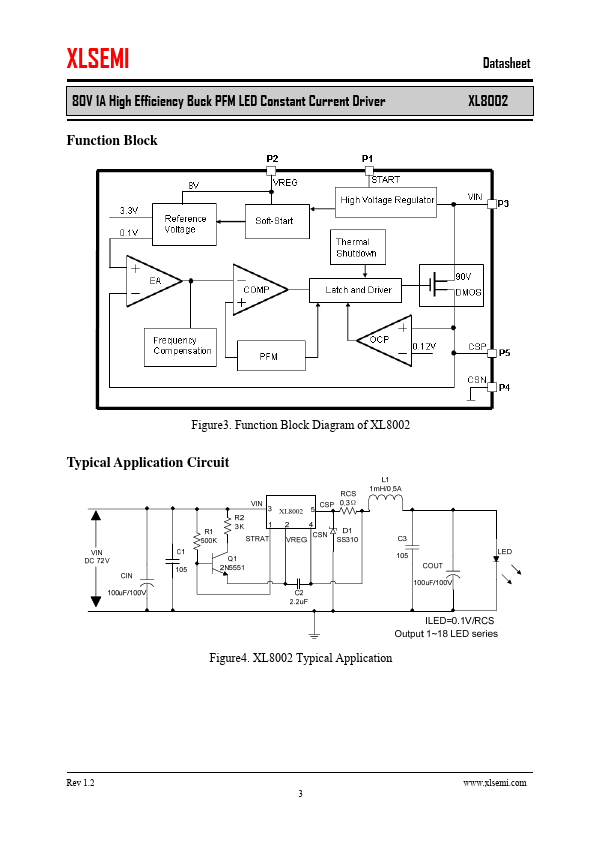

XLSEMI Datasheet 80V 1A High Efficiency Buck PFM LED Constant Current Driver XL8002 Features „ Operation Voltage DC 12V~80V. „ 0.1V current sense voltage reference. „ Directly drive 1~18 Series 1W/3W LED. „ Excellent line and load regulation. „ Internal Optimize Power HV-MOSFET. „ Built in Thermal Shutdown Function. „ Built in Current Limiting Function. „ Built in Soft-Start Circuit. „ Available in TO263-5L package. „ Up to 98% efficiency. General Description The XL8002 is a monolithic high voltage switching regulator with PFM that is specifically designed to operate from a 12V~80V DC power supply. The XL8002 is a high efficiency LED driver switching regulator.
